Description

Specification

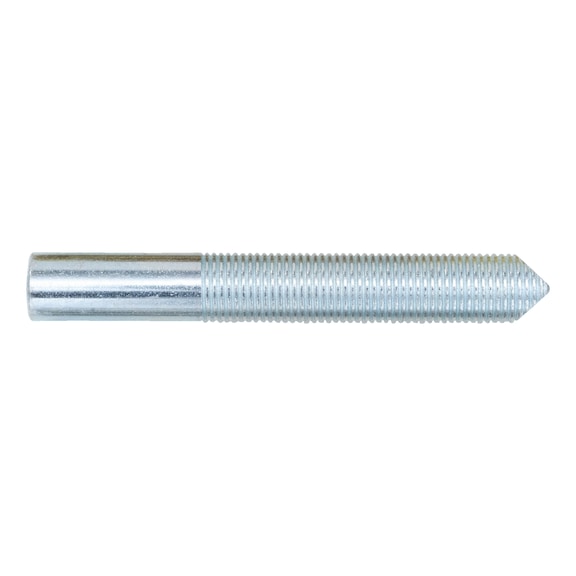

For compound anchor cartridge system W-VD and WIT injection systems in non-cracked concrete. Zinc-plated steel | Anchorage via bond between mortar, female thread sleeve and anchoring base | Galvanised steel female thread sleeve in sizes (female thread) M8, M10, M12 and M16 | Notice | Drill hole cleaning: 3x blow out | Assembly instructions: Insert female thread sleeve using hammer drill or impact drill in rotation + impact mode.
Application
Application area | W-VD-IG/S (galvanised steel) can be used in dry indoor areas
Tehnical Information
Type description: W-VD-IG/S | Anchor internal diameter metric: IT M16 | Female-thread length: 40 mm | Anchor diameter (d): 22 mm | Effective anchoring depth (h ef): 120 mm | Anchor length (l) (l): 120 mm | Nominal drill-bit diameter cartridge system (d 0): 25 mm | Drill hole depth (h 0): 120 mm | Surface: Zinc plated | Material: Steel
