Description

Specification

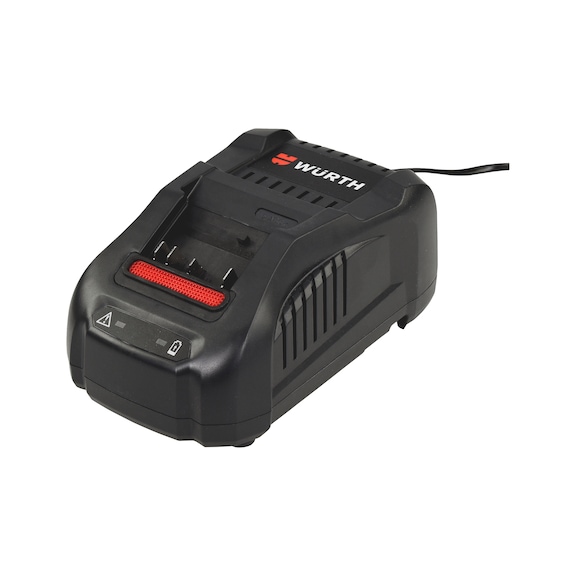

Charger suitable for 14.4 V and 18 V Li-ion system batteries (CV)
Application

Tehnical Information
Type description: AL 20-CV-LI | Input voltage: 230 V/AC | Min./max. output voltage: 14.4-18 V/DC | Min./max. frequency: 50 / 60 Hz | Max. charging current: 8 A | Cable length: 1.6 m | Length: 182 mm | Width: 115 mm | Height: 85 mm | Max. output voltage: 18 V/DC | Max. frequency: 60 Hz | Min. frequency: 50 Hz | Power output: 288 W | Number of pieces: 1 PCS | Max. input voltage: 240 V/AC | Min./max. temperature conditions: 10 to 45 °C | Min./max. input voltage: 220-240 V/AC | Max. temperature conditions: 45 °C | Min. temperature conditions: 10 °C | Protection class: Protection class II/protective insulation | Product weight (per item): 769.000 g | Min. output voltage: 14.4 V/DC | Plug type: C | WEEE (taking back waste electrical and electronic equipment): 5 | Nominal voltage: 18 V/DC
