For secondary attachments in cavity walls, hollow ceilings and different types of sandwich panel | With large and variable effective length

Fully pre-assembled

The toggle anchor locks itself into the substrate

The rotatable threaded rod allows each attachment point to be adjusted individually, e.g. when creating a slope | With large and variable effective length | Fully pre-assembled | The toggle anchor locks itself into the substrate | The rotatable threaded rod allows each attachment point to be adjusted individually, e.g. when creating a slope | Drill the hole
Insert anchor until element tilts
Secure hook with nut | Drill the hole | Drill the hole | Drill the hole | Insert anchor until element tilts | Insert anchor until element tilts | Insert anchor until element tilts | Secure hook with nut | Secure hook with nut | Secure hook with nut
Application
Application area | For fixtures in hollow walls, hollow ceilings, suspended ceilings and various sandwich elements

Maximum point load on trapezoidal sheet metal ceilings for pipes = 0.8 kN /other fastenings = 1.0 kN | For fixtures in hollow walls, hollow ceilings, suspended ceilings and various sandwich elements | Maximum point load on trapezoidal sheet metal ceilings for pipes = 0.8 kN /other fastenings = 1.0 kN
Tehnical Information

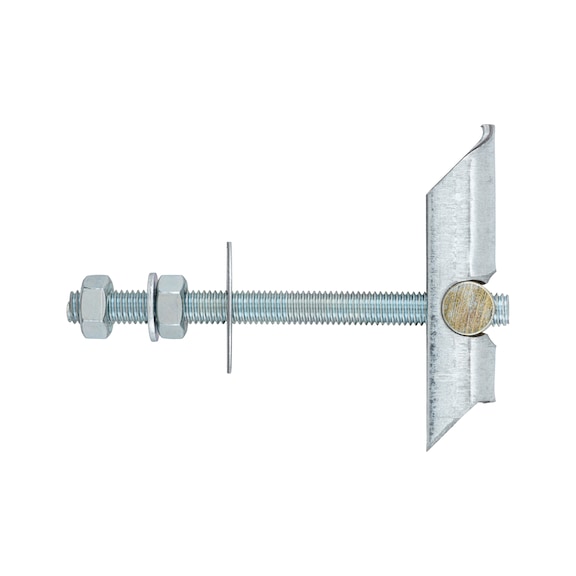

Anchor diameter: 6 mm | Type description: W-KD | Anchor length (l): 100 mm | Hole diameter in component (d Bau): 7 mm | Design: With washer and nut | Nominal drill-bit diameter (d 0): 17 mm | Thread diameter (d thr): 6 mm | Max. attachment height (d a): 60 mm | Material: Steel | Minimum cavity depth (h): 75 mm | Surface: Zinc plated | Thread type: Metric thread
