Description

Specification

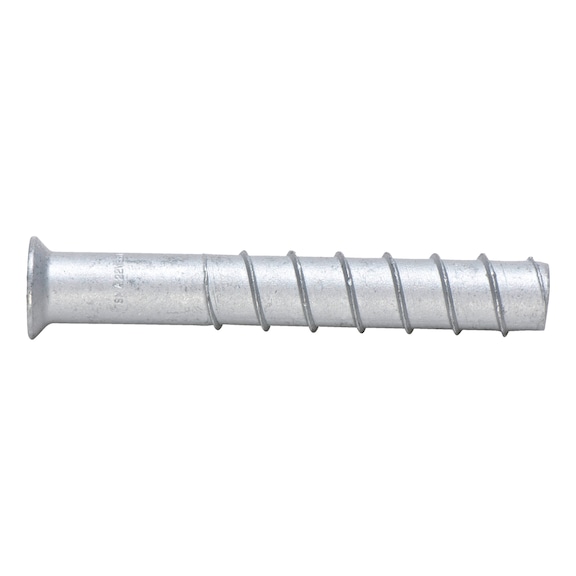

For anchoring in tarmac, to be processed with chemical injection mortar WIT-PE 1000. Design with metric female thread, zinc-plated steel | For anchorages directly in tarmac

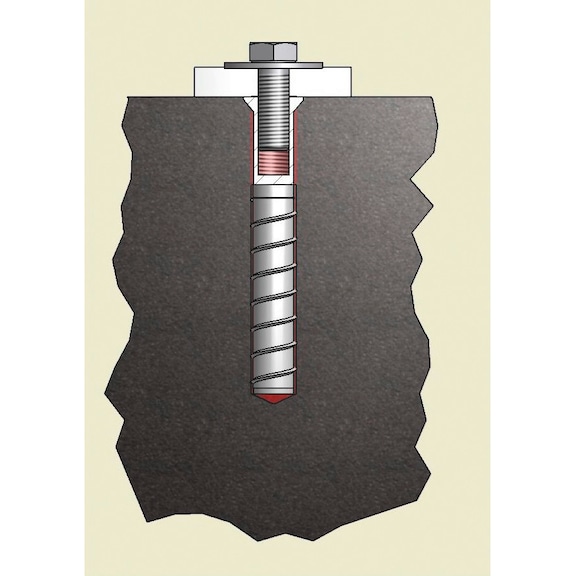

Anchoring by bond between chemical injection mortar WIT-PE 1000, tarmac and tarmac screw anchor as well as mechanical interlock between tarmac and tarmac fixing bolt

With the associated reducer sections, thread size M16 can be reduced to M12 or M10

Removal possible at any time by unscrewing the metric screw

For use with: Chemical injection mortar WIT-PE 1000: Pure epoxy mortar

Application from 0°C to +40°C

Minimum cartridge life: 24 months

Storage temperature between +5°C and +25°C | For anchorages directly in tarmac | Anchoring by bond between chemical injection mortar WIT-PE 1000, tarmac and tarmac screw anchor as well as mechanical interlock between tarmac and tarmac fixing bolt | With the associated reducer sections, thread size M16 can be reduced to M12 or M10 | Removal possible at any time by unscrewing the metric screw | For use with: Chemical injection mortar WIT-PE 1000: Pure epoxy mortar | Application from 0°C to +40°C | Minimum cartridge life: 24 months | Storage temperature between +5°C and +25°C | Notice | Observe the processing instructions for the chemical injection mortar WIT-PE 1000. The tarmac fixing bolt is unsuitable for constant tensile loads.
Application
Application area | W-SA A-IG is used for anchoring in tarmac

Only suitable for constant compressive loads. Not suitable for constant tensile loads. Only apply tensile or shear loads of short duration

Suitable for attaching bicycle stands, shopping trolley bays, park benches, fences, barriers, signs, notice boards, waste bins, construction site fencing, construction site safety barriers etc. | W-SA A-IG is used for anchoring in tarmac | Only suitable for constant compressive loads. Not suitable for constant tensile loads. Only apply tensile or shear loads of short duration | Suitable for attaching bicycle stands, shopping trolley bays, park benches, fences, barriers, signs, notice boards, waste bins, construction site fencing, construction site safety barriers etc.
Tehnical Information
Anchor diameter: 16 mm | Anchor length (l): 155 mm | Female thread: 16 mm | Drill hole diameter: 22 mm | Drill hole depth (h 1): 160 mm | Embedding depth (h nom): 155 mm | Min. asphalt thickness: 200 mm | Required screw length – condition: 25 mm + thickness of the add-on part | Head type: Countersunk head | Head diameter (d sk): 30 mm | Drive type: Hexagon socket | Thread diameter: 24.6 mm | Internal drive: HS12 | Material: Steel | Surface: Flake zinc silver
