Description

Specification
For WIT injection systems in concrete and masonry | A4-70 strength | The anchor rod is covered by the following approvals: | Injection system ALLROUNDER WIT-VM 250, Option 1: ETA-12/0164

Injection system WIT-Nordic, Option 1: ETA-16/0164

Injection system CONCRETE-MULTI WIT-UH 300, Option 1: ETA-17/0127

Injection system PURE-EPOXY WIT-PE 1000, option 1: ETA-19/0542

Injection system WIT-PE 500, Option 1: ETA-09/0040

Injection system BASIC WIT-PM 200, Option 7: ETA-12/0569

Injection system BASIC WIT-PM 200, masonry: ETA-13/0037

Injection system ALLROUNDER WIT-VM 250, masonry: ETA-16/0757

Injection system WIT-Nordic, masonry ETA-16/0757 | Injection system ALLROUNDER WIT-VM 250, Option 1: ETA-12/0164 | Injection system WIT-Nordic, Option 1: ETA-16/0164 | Injection system CONCRETE-MULTI WIT-UH 300, Option 1: ETA-17/0127 | Injection system PURE-EPOXY WIT-PE 1000, option 1: ETA-19/0542 | Injection system WIT-PE 500, Option 1: ETA-09/0040 | Injection system BASIC WIT-PM 200, Option 7: ETA-12/0569 | Injection system BASIC WIT-PM 200, masonry: ETA-13/0037 | Injection system ALLROUNDER WIT-VM 250, masonry: ETA-16/0757 | Injection system WIT-Nordic, masonry ETA-16/0757
Application
Application area | Anchor rod can be used for the following injection systems: | ALL-ROUNDER WIT-VM 250 injection system, option 1 – cracked and uncracked concrete

WIT-Nordic injection system, option 1 – cracked and uncracked concrete

CONCRETE MULTI WIT-UH 300 injection system, option 1 – cracked and uncracked concrete

PURE EPOXY WIT-PE 1000 injection system, option 1 – cracked and uncracked concrete

WIT-PE 500 injection system, option 1 – cracked and uncracked concrete

BASIC WIT-PM 200 injection system, option 7 – uncracked concrete

ALL-ROUNDER WIT-VM 250 injection system, masonry and SH – solid brick and perforated brick, autoclaved aerated concrete

WIT-Nordic injection system, masonry and SH – solid brick and perforated brick, autoclaved aerated concrete

BASIC WIT-PM 200 injection system, masonry and SH – solid brick and perforated brick, autoclaved aerated concrete | ALL-ROUNDER WIT-VM 250 injection system, option 1 – cracked and uncracked concrete | WIT-Nordic injection system, option 1 – cracked and uncracked concrete | CONCRETE MULTI WIT-UH 300 injection system, option 1 – cracked and uncracked concrete | PURE EPOXY WIT-PE 1000 injection system, option 1 – cracked and uncracked concrete | WIT-PE 500 injection system, option 1 – cracked and uncracked concrete | BASIC WIT-PM 200 injection system, option 7 – uncracked concrete | ALL-ROUNDER WIT-VM 250 injection system, masonry and SH – solid brick and perforated brick, autoclaved aerated concrete | WIT-Nordic injection system, masonry and SH – solid brick and perforated brick, autoclaved aerated concrete | BASIC WIT-PM 200 injection system, masonry and SH – solid brick and perforated brick, autoclaved aerated concrete | A4 stainless steel can be used in dry indoor areas, outdoors (including in industrial atmospheres and coastal areas) or in damp rooms, provided that no particularly aggressive conditions are present.
Tehnical Information

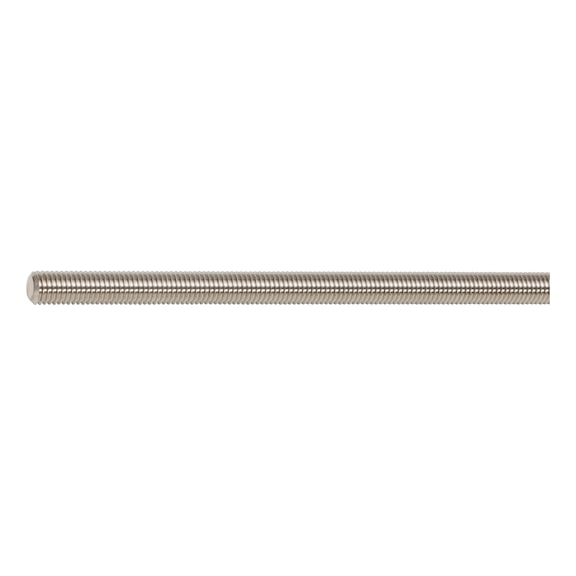

Type description: WIT-THRROD | Property class: 70 | Metric anchor diameter: M12 | Anchor length (l): 1000 mm | Nominal drill-bit diameter injection system (d 0): 14 mm | Approval: ETA-09/0040, ETA-12/0164, ETA-05/0034, ETA-12/0569, ETA-13/0037, ETA-16/0757, ETA-17/0127, ETA-19/0542, ETA-20/0854, ETA-20/1038 | Suitable for perforated sleeve: SH 20 x 85, SH 20 x 130, SH 20 x 200 | Material: Stainless steel A4
