Description

Specification

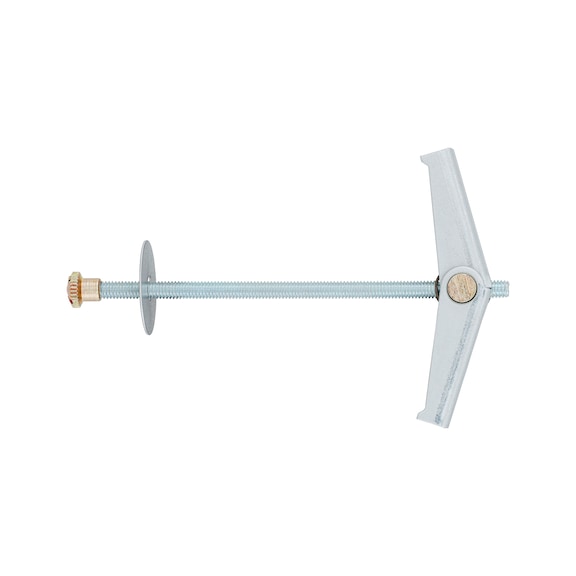

For secondary attachments in cavity walls, hollow ceilings and all types of panel material | The spring toggle expands automatically in any position

The design of a spring toggle means it does not need to be inserted as deeply in a cavity as a toggle anchor

With large and variable useful length

Fully pre-assembled

Anti-rotation lock (claws) prevents movement during installation

Load distributed over large surface area to ensure good holding power | The spring toggle expands automatically in any position | The design of a spring toggle means it does not need to be inserted as deeply in a cavity as a toggle anchor | With large and variable useful length | Fully pre-assembled | Anti-rotation lock (claws) prevents movement during installation | Load distributed over large surface area to ensure good holding power | Drill the hole
Insert anchor until hooks fold open
Attach component and screw on brass nut
Screw in screw until flush | Drill the hole | Drill the hole | Drill the hole | Insert anchor until hooks fold open | Insert anchor until hooks fold open | Insert anchor until hooks fold open | Attach component and screw on brass nut | Attach component and screw on brass nut | Attach component and screw on brass nut | Screw in screw until flush | Screw in screw until flush | Screw in screw until flush
Application
Application area | The anchor for mounting curtain rails, shelf rails, switches and lightweight attachments.
Tehnical Information
Type description: W-FK | Anchor diameter: 4 mm | Anchor length (l): 90 mm | Hole diameter in component (d Bau): 5 mm | Minimum cavity depth (h): 40 mm | Nominal drill-bit diameter (d 0): 14 mm | Max. attachment height (d a): 69 mm | Material: Steel | Surface: Zinc plated | Design: With washer and MS knurled nut | Breaking force of the anchor (F failure): 2 kN | Thread type: Metric thread | Type W-FKH 0.1
hook bends up: Type W-FKH 0.3
hook bends up
