Description

Specification

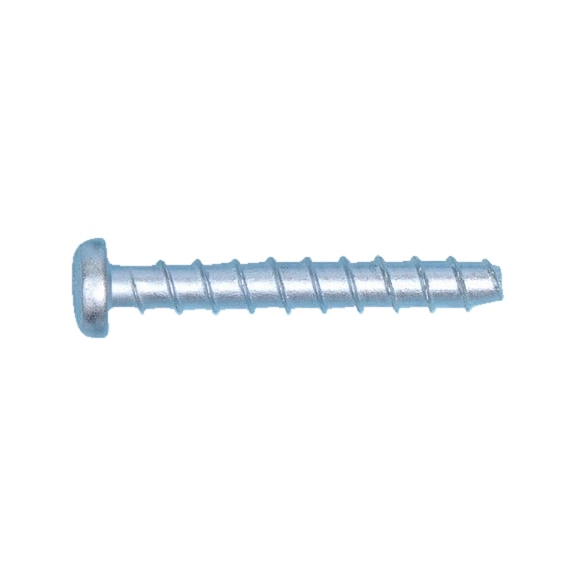

Ideally suited for mounting small electrical clamps. | Small drill hole diameter

Small head diameter

Quick and easy installation or removal by inserting or removing screw anchor | Small drill hole diameter | Small head diameter | Quick and easy installation or removal by inserting or removing screw anchor
Application
Application area | Ideal for mounting small cable clamps or fasteners with a small through hole, for which no approval is required
Tehnical Information
Anchor diameter: 5 mm | Anchor length (l) (l): 30 mm | Embedding depth (h nom): 30 mm | Nominal drill-bit diameter (d 0): 4.0 mm | Centre-to-centre distance in concrete (s): 50 mm | Edge clearance in concrete (c): 50 mm | Minimum component thickness (h min): 90 mm | Through-hole in the component to be connected (d f): 5.5 mm | Internal drive: TX20 | Material: Steel | Surface: Zinc plated
