Description

Specification

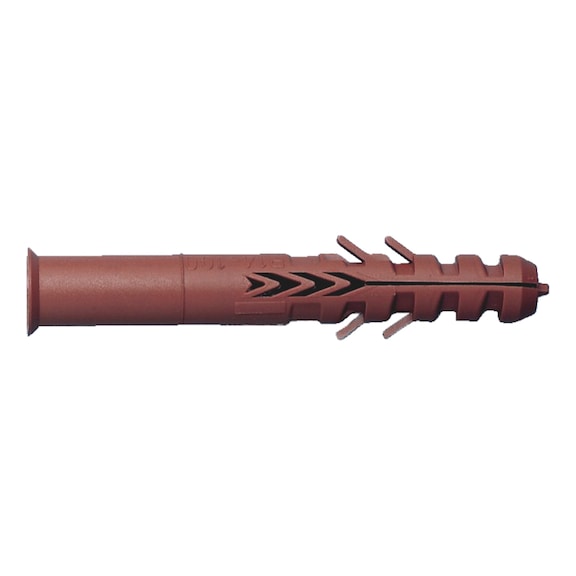

GR 14 mm scaffold anchors for fastening free-standing scaffolding (must be used with eyelet screw GS 12) | Anchor sleeve and eyelet screw are perfectly coordinated to guarantee maximum safety

Anchor made of high-quality polyamide (nylon)

Polyamide anchors may be used only once to ensure maximum load capacity | Anchor sleeve and eyelet screw are perfectly coordinated to guarantee maximum safety | Anchor made of high-quality polyamide (nylon) | Polyamide anchors may be used only once to ensure maximum load capacity | Notice | The eyelet screw must be screwed into the anchor until the screw tip protrudes from the front of the anchor by at least 1x the screw diameter. This is the only way to achieve the maximum load capacity

The polyamide (nylon) anchor must not be reused

Drill hollow block brick without impact mechanism

Using carbide multi-purpose drill bits allows for a much better drill hole to be produced in perforated brick and much higher extraction values

Hollow block brick should generally be drilled without an impact mechanism | The eyelet screw must be screwed into the anchor until the screw tip protrudes from the front of the anchor by at least 1x the screw diameter. This is the only way to achieve the maximum load capacity | The polyamide (nylon) anchor must not be reused | Drill hollow block brick without impact mechanism | Using carbide multi-purpose drill bits allows for a much better drill hole to be produced in perforated brick and much higher extraction values | Hollow block brick should generally be drilled without an impact mechanism | Drill hole
Clean the drill hole
Install anchor
Screw in securing element | Drill hole | Drill hole | Clean the drill hole | Clean the drill hole | Install anchor | Install anchor | Screw in securing element | Screw in securing element
Application
Application area | When attaching free-standing scaffolding, GR Ø 14 must be used with eyelet screw GS 12

Suitable for anchoring in solid materials, concrete, solid brick and rock, excluding lightweight concrete

For perforated brick and lightweight or aerated concrete, we recommend using our HBR Ø 14 plastic frame anchor (large expansion zone) in conjunction with a GS 10 eyelet screw, and using a carbide multi-purpose drill bit for the drill hole to ensure optimum holding power | When attaching free-standing scaffolding, GR Ø 14 must be used with eyelet screw GS 12 | Suitable for anchoring in solid materials, concrete, solid brick and rock, excluding lightweight concrete | For perforated brick and lightweight or aerated concrete, we recommend using our HBR Ø 14 plastic frame anchor (large expansion zone) in conjunction with a GS 10 eyelet screw, and using a carbide multi-purpose drill bit for the drill hole to ensure optimum holding power
Tehnical Information
Anchor diameter: 14 mm | Anchor length (l) (l): 70 mm | Embedding depth (h nom): 70 mm | Nominal drill-bit diameter (d 0): 14 mm | Drill hole depth (h 1): 80 mm
