Description

Specification

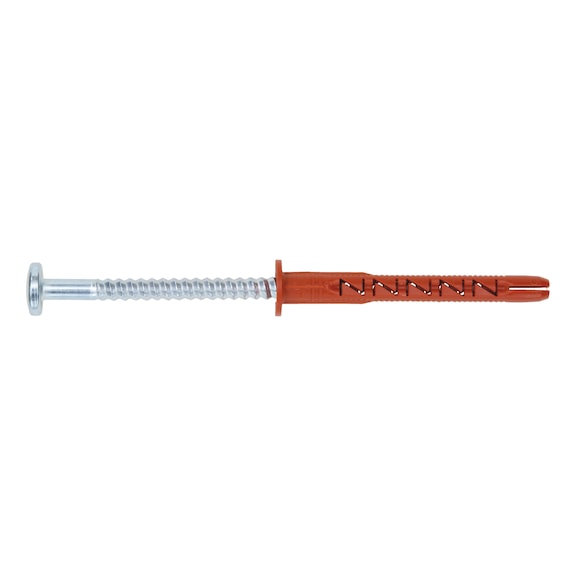

The first 6-series plastic anchor with ETA approval for multiple attachment in concrete. With pre-assembled pan head screw made of zinc plated steel | SymCon screw: The dimensions of the anchor screw enable safe subsequent expansion properties

SymCon screw: Screwing in the SymCon screw ensures optimum compression of the wall plug body plastic (virtually no undercutting)

Improved load transfer: Even, continuous load distribution across the entire expansion area

The hammer-in stop prevents premature expansion of the anchor during installation

Pre-assembled wall plug body and special screw — easier installation

Anchorage via friction locking between wall plug body and anchoring base

Wall plug body made of high-quality polyamide | SymCon screw: The dimensions of the anchor screw enable safe subsequent expansion properties | SymCon screw: Screwing in the SymCon screw ensures optimum compression of the wall plug body plastic (virtually no undercutting) | Improved load transfer: Even, continuous load distribution across the entire expansion area | The hammer-in stop prevents premature expansion of the anchor during installation | Pre-assembled wall plug body and special screw — easier installation | Anchorage via friction locking between wall plug body and anchoring base | Wall plug body made of high-quality polyamide | Proof of Performance | W-UR 6 SymCon and W-UR F 6 SymCon (galvanised steel): European Technical Approval ETA-11/0309 | Notice | Drill cuttings must be removed from the drill hole. | Application area | Create the drill hole
Clean the drill hole

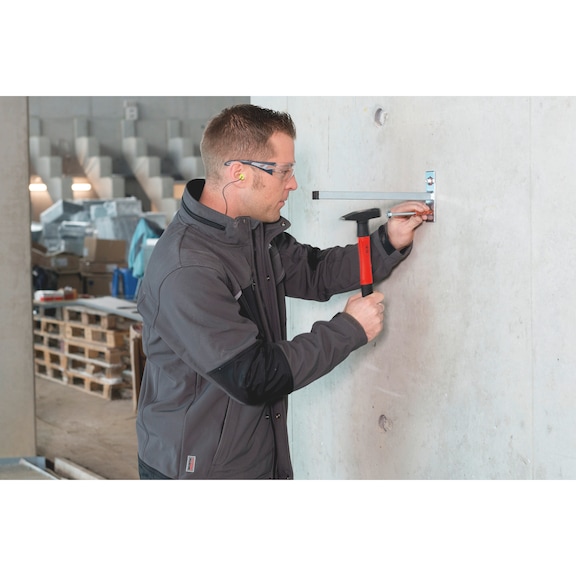

Set anchor and screw

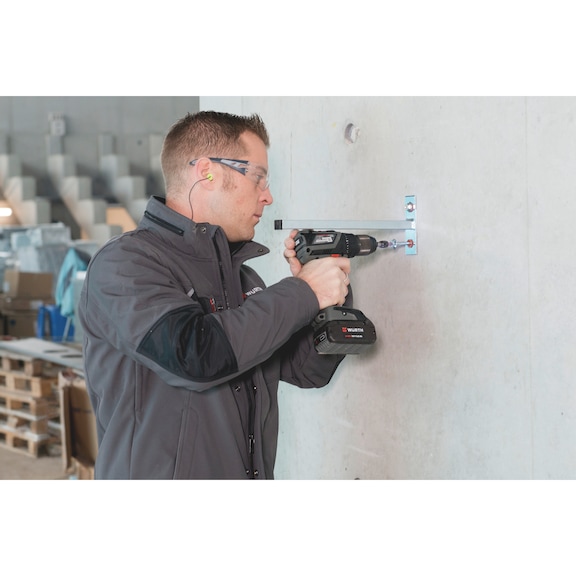

Screw in the screw
Screw in screw until flush | Create the drill hole | Create the drill hole | Clean the drill hole | Clean the drill hole | Set anchor and screw | Set anchor and screw | Screw in the screw | Screw in the screw | Screw in screw until flush | Screw in screw until flush | W-UR 6 SymCon and W-UR F 6 SymCon (galvanised steel): European Technical Approval ETA-11/0309
Application
Application area | The anchor may be used with a European technical approval for the multiple attachment of non-load-bearing systems (e.g. suspended ceilings etc.) | Anchoring base with approval: Standard concrete ≥ C12/15 | Unapproved anchoring bases: Solid brick, solid sand-lime brick, vertically perforated brick, hollow sand-lime brick, hollow lightweight concrete blocks, solid bricks and blocks made of lightweight concrete | Installation temperatures: Temperature of anchoring base: ≥–20°C, temperature of wall plug body: ≥ 0°C | Suitable for attaching ceiling substructures (made of wood or steel), wooden laths, metal rails, suspended ceilings, cable conduits, angle brackets, profiles etc.
Tehnical Information
Anchor diameter: 6 mm | Anchor length (l): 60 mm | Nominal drill-bit diameter (d 0): 6 mm | Through-hole in the component to be connected (d f): 6.5 mm | Fire resistance rating: F30 | Material of screw: Steel | Internal drive: AW20 | Surface of the screw: Zinc plated | Head type: Pan head | Drill hole depth (h 1): 60 mm | Approval: ETA-11/0309 | Type description: W-UR F 6 SymCon, pan head screw | ≥ C16/20: 40 | ≥ C16/20: 40 | ≥ C16/20: 40
