Description

Specification

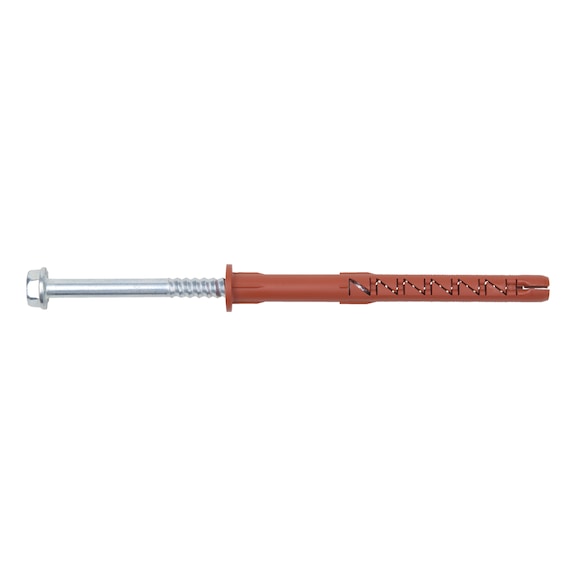

Plastic frame anchor approved for high loads with special screw made of zinc plated steel with hexagon head and Symcon thread | Universal frame anchor (concrete, perforated and solid brick masonry) | Virtually no movement of the wall plug body | Low screw-in torque of the plug screw

“Slight” spreading of the anchor | Low screw-in torque of the plug screw | “Slight” spreading of the anchor | Reliable post-spreading characteristics | Enabled by geometry of the SymCon plug screw | Increased load introduction | Screwing in the SymCon screw results in optimum compression of the plastic of the wall plug body (almost no back-cut) | Low assembly workload | Wall plug body and special screw are pre-assembled | Saves an additional U washer and prevents contact corrosion | Wall plug body made of high-quality polyamide | Proof of Performance | European Technical Approval ETA-11/0309, multiple attachment of non-load-bearing systems in concrete and masonry | Notice | For anchoring in solid brick and solid sand-lime brick, we recommend that you perform pull-out tests due to the differences in brick manufacturing

Lengths 330 mm, 360 mm and 390 mm are not pre-assembled

Drill perforated and hollow blocks with a rotary drill (without impact mechanism) | For anchoring in solid brick and solid sand-lime brick, we recommend that you perform pull-out tests due to the differences in brick manufacturing | Lengths 330 mm, 360 mm and 390 mm are not pre-assembled | Drill perforated and hollow blocks with a rotary drill (without impact mechanism) | Application area | Metal substructures | Metal substructures | Metal substructures | Create the drill hole
Clean the drill hole
Set anchor and screw
Screw in the screw
Screw in screw until flush | Create the drill hole | Create the drill hole | Clean the drill hole | Clean the drill hole | Set anchor and screw | Set anchor and screw | Set anchor and screw | Screw in the screw | Screw in the screw | Screw in the screw | Screw in screw until flush | Screw in screw until flush | Screw in screw until flush | Create the drill hole
Clean the drill hole
Set anchor and screw
Screw in the screw
Screw in screw until flush | Create the drill hole | Create the drill hole | Clean the drill hole | Clean the drill hole | Set anchor and screw | Set anchor and screw | Screw in the screw | Screw in the screw | Screw in screw until flush | Screw in screw until flush | European Technical Approval ETA-11/0309, multiple attachment of non-load-bearing systems in concrete and masonry
Application
Application area | Multiple attachment of non-load-bearing systems with approval | e.g. façades, suspended ceilings, roof substructures (made of wood or steel), wooden beams, wooden laths, angle brackets, wall-mounted cabinets, shelves etc. | Anchoring bases | Standard concrete

Masonry walls (solid brick, solid sand-lime brick, vertically perforated brick, hollow sand-lime brick, hollow lightweight concrete blocks, solid bricks and blocks made of lightweight concrete, concrete bricks) | Standard concrete | Masonry walls (solid brick, solid sand-lime brick, vertically perforated brick, hollow sand-lime brick, hollow lightweight concrete blocks, solid bricks and blocks made of lightweight concrete, concrete bricks)
Tehnical Information
Anchor diameter: 14 mm | Anchor length (l): 110 mm | Nominal drill-bit diameter (d 0): 14 mm | Through-hole in the component to be connected (d f): 14.5 mm | Attachment height (t fix 1): 40 mm | Material of screw: Steel | Internal drive: AW50 | Surface of the screw: Zinc plated | Head type: Hexagon head | Approval: ETA-11/0309 | Type description: W-UR F 14 SymCon, hexagonal bolt | 270: 200/170 | 300: 230/200 | 330: 260/230 | 360: 290/260 | 390: 320/290
