Description
Specification

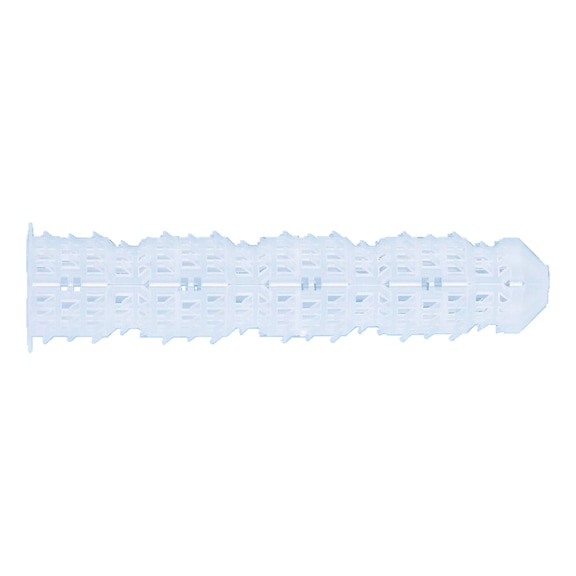

WIT-SH masonry and perforated sleeve | Masonry individual attachment (system with perforated sleeve WIT-SH): | ALLROUNDER chemical injection mortar WIT-VM 250, anchor rod WIT-AS, female thread sleeve WIT-IG
Required for anchoring in perforated brick masonry and aerated concrete (only WIT-SH 18×95)
The anchor rods (WIT-AS) or female thread sleeves (WIT-IG) will be held centrally in the perforated sleeve during mounting
The perforated sleeve barbs keep the perforated sleeve or anchor rod (short dimensions) from falling out during mounting — overhead mounting | ALLROUNDER chemical injection mortar WIT-VM 250, anchor rod WIT-AS, female thread sleeve WIT-IG | Required for anchoring in perforated brick masonry and aerated concrete (only WIT-SH 18×95) | The anchor rods (WIT-AS) or female thread sleeves (WIT-IG) will be held centrally in the perforated sleeve during mounting | The perforated sleeve barbs keep the perforated sleeve or anchor rod (short dimensions) from falling out during mounting — overhead mounting | European Technical Assessment ETA-13/1040: Individual attachment plus solid and perforated brick masonry, aerated concrete | (ALLROUNDER WIT-VM 250 chemical injection mortar, anchor rod WIT-AS, female thread sleeve WIT-IG)
Application
Tehnical Information
Type description: WIT-SH 18/95 | Diameter: 18 mm | Length: 95 mm | Material: Plastic | Nominal drill-bit diameter (d 0): 18 mm | Drill hole depth (h 0): 100 mm | Effective anchoring depth (h ef): 95 mm | Suitable for anchor rod: WIT-AS M8, WIT-AS M10, WIT-AS M12 | Suitable for female thread sleeve: WIT-IG M6, WIT-IG M8 | Required injection mortar: WIT-VM 250 | Approval: ETA-13/1040
