Description

Specification
WIT-SH masonry and perforated sleeve | Masonry individual attachment (system with perforated sleeve WIT-SH): | ALLROUNDER chemical injection mortar WIT-VM 250, anchor rod WIT-AS, female thread sleeve WIT-IG

Required for anchoring in perforated brick masonry and aerated concrete (only WIT-SH 18×95)

The anchor rods (WIT-AS) or female thread sleeves (WIT-IG) will be held centrally in the perforated sleeve during mounting

The perforated sleeve barbs keep the perforated sleeve or anchor rod (short dimensions) from falling out during mounting — overhead mounting | ALLROUNDER chemical injection mortar WIT-VM 250, anchor rod WIT-AS, female thread sleeve WIT-IG | Required for anchoring in perforated brick masonry and aerated concrete (only WIT-SH 18×95) | The anchor rods (WIT-AS) or female thread sleeves (WIT-IG) will be held centrally in the perforated sleeve during mounting | The perforated sleeve barbs keep the perforated sleeve or anchor rod (short dimensions) from falling out during mounting — overhead mounting | European Technical Assessment ETA-13/1040: Individual attachment plus solid and perforated brick masonry, aerated concrete | (ALLROUNDER WIT-VM 250 chemical injection mortar, anchor rod WIT-AS, female thread sleeve WIT-IG)
Application

Tehnical Information

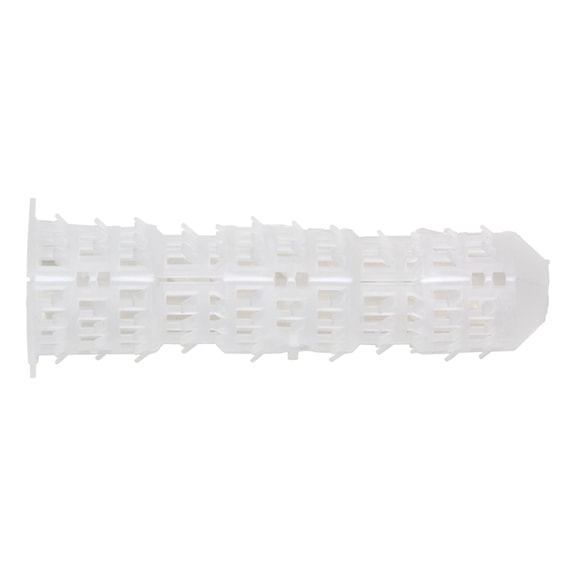

Type description: WIT-SH 12/50 | Diameter: 12 mm | Length: 50 mm | Material: Plastic | Nominal drill-bit diameter (d 0): 12 mm | Drill hole depth (h 0): 55 mm | Effective anchoring depth (h ef): 50 mm | Suitable for anchor rod: WIT-AS M6/50, WIT-AS M8/50 | Required injection mortar: WIT-VM 250 | Approval: ETA-13/1040
