Description

Specification

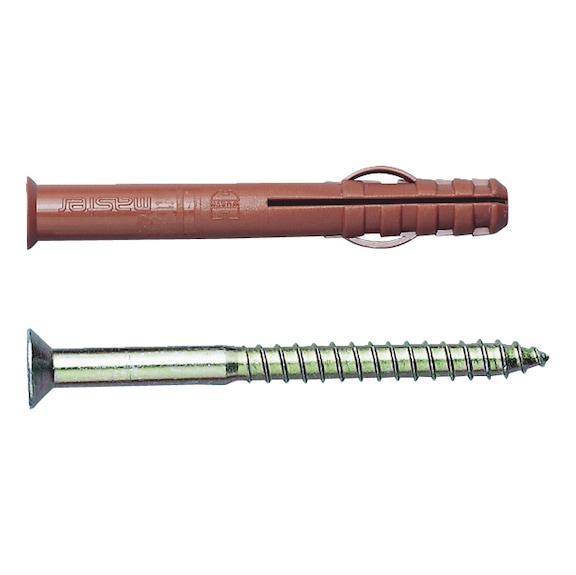

For fixing door- and window frames | For bolt-through fixings | High-quality nylon material | Expanding | Highly durable against weather, age and chemicals | Screw-on model (screws included): | Special nail plug screw, galvanised, blue passivated, crosshead screw, low countersunk head, hole ج3¬mm

Special nail plug, yellow passivated, TX-torque 40 | Special nail plug screw, galvanised, blue passivated, crosshead screw, low countersunk head, hole ج3¬mm | Special nail plug, yellow passivated, TX-torque 40 | Instructions | Recommended maximum load kN
Concrete C12/15 0,8 kN
Solid brick 0,6 kN
(1kN ~ 100 kg) | Recommended maximum load kN
Concrete C12/15 0,8 kN
Solid brick 0,6 kN
(1kN ~ 100 kg) | Recommended maximum load kN
Concrete C12/15 0,8 kN
Solid brick 0,6 kN
(1kN ~ 100 kg) | Recommended maximum load kN | Recommended maximum load kN | Concrete C12/15 0,8 kN | Concrete C12/15 | 0,8 | kN | Solid brick 0,6 kN | Solid brick | 0,6 | kN | (1kN ~ 100 kg) | (1kN ~ 100 kg)
Application
Application area | The plug can be affixed to concrete, brick and small wall surfaces | Suitable for wood or steel panelling of the facade as well as profile fixtures, angle brackets and also fixing metal and wood elements.
Tehnical Information
Anchor diameter: 10 mm | Anchor length (l) (l): 135 mm | Drill hole depth (t): 60 mm
