Description

Specification

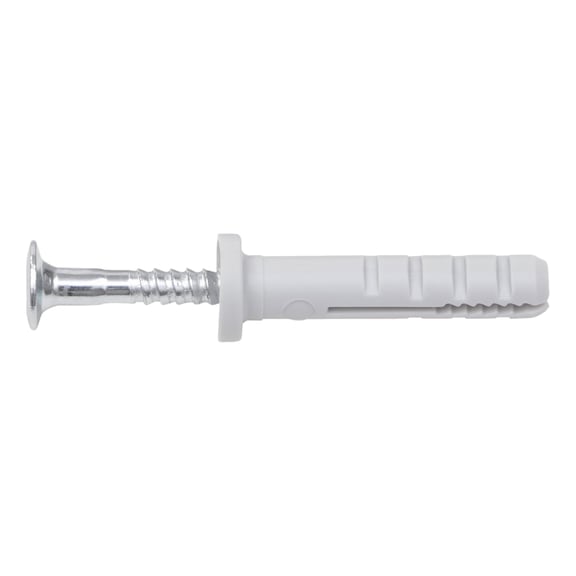

For dry walling, with zinc-plated steel nail | Quick, cost-effective installation | Pre-assembled: no need to search for the right screw | Also suitable for ducts | Can be removed via drive in screw head | Properties | UV-resistant

Plastic anchors made of high-quality polyamide: resistant to mould

Heat resistant -40 to +150°C

Halogen- and silicone-free | UV-resistant | Plastic anchors made of high-quality polyamide: resistant to mould | Heat resistant -40 to +150°C | Halogen- and silicone-free
Application

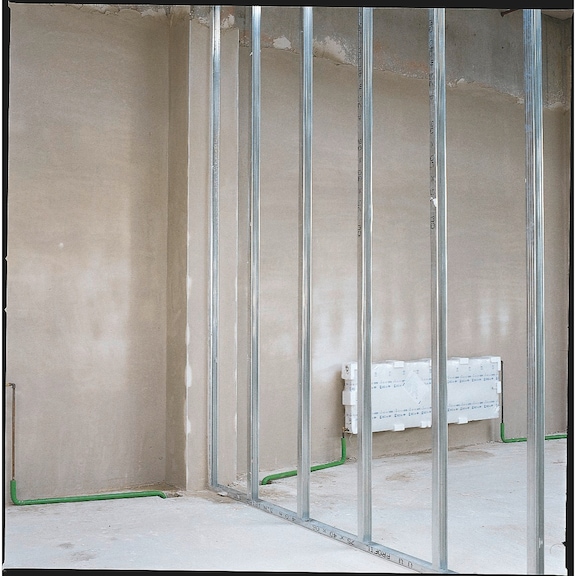

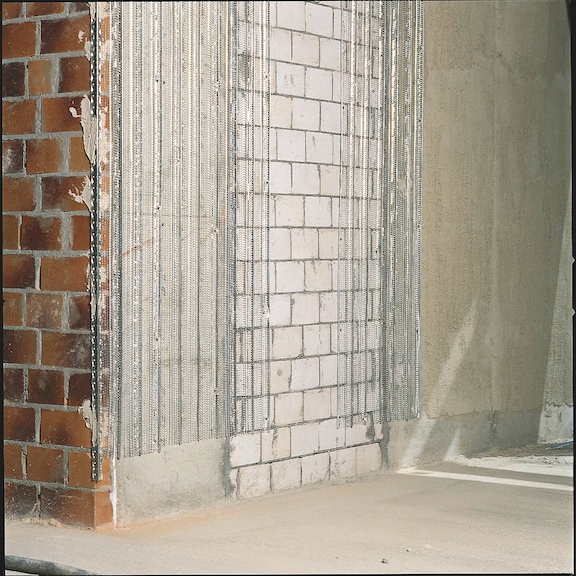

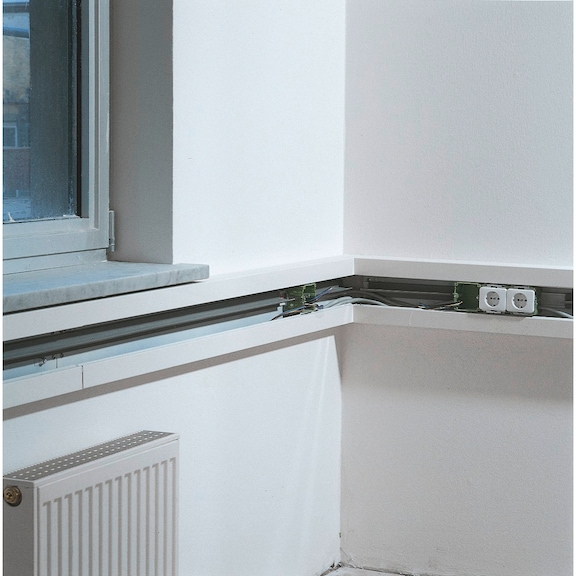

Application area | Can be used for concrete, solid brick, calcium silicate block, aerated concrete, vertically perforated brick, hollow calcium silicate block, screed and plasterboard | For fastening non-load-bearing elements and light loads in construction, metalworking, sanitary and electrical applications | Flat head: Securing angle brackets, panels, metal sheets, cable ducts and any components for non-recessed installation
Tehnical Information
Anchor diameter: 6 mm | Anchor length (l): 30 mm | Max. attachment height (t fix): 5 mm | Embedding depth (h nom): 30 mm | Nominal drill-bit diameter (d 0): 6 mm | Drill hole depth (h 1): 25 mm | Material of nail: Steel | Internal drive: Z2
