Description

Specification

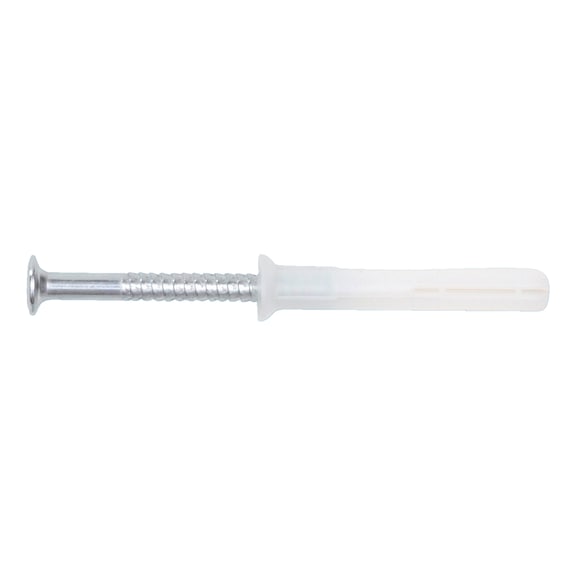

For fastening squared timbers, laths, thin sheets and all components for recessed mounting. Wall plug body with countersunk head, nails zinc-plated steel | Quick, low-cost assembly

Can be removed again using drive in screw head

Pre-assembled with matching screw

Suitable for push-through installation

Clear integral hammer-in stop prevents premature expansion

For recessed or protruding installation (retracts into soft wood automatically)

Resistant to UV rays

Rot resistant (plastic anchors made of high-quality polyamide)

Temperature resistant from -40°C to +150°C

Halogen-free | Quick, low-cost assembly | Can be removed again using drive in screw head | Pre-assembled with matching screw | Suitable for push-through installation | Clear integral hammer-in stop prevents premature expansion | For recessed or protruding installation (retracts into soft wood automatically) | Resistant to UV rays | Rot resistant (plastic anchors made of high-quality polyamide) | Temperature resistant from -40°C to +150°C | Halogen-free | Drill the hole
Clean the drill hole
Insert anchor through the component into the drilled hole
Knock in expansion nail until flush | Drill the hole | Drill the hole | Drill the hole | Clean the drill hole | Clean the drill hole | Clean the drill hole | Insert anchor through the component into the drilled hole | Insert anchor through the component into the drilled hole | Insert anchor through the component into the drilled hole | Knock in expansion nail until flush | Knock in expansion nail until flush | Knock in expansion nail until flush
Application
Application area | Can be used in concrete, solid brick, sand-lime brick, aerated concrete, vertically perforated brick, lightweight concrete, hollow sand-lime brick, screed, gypsum panels

Any attachments for light and medium loads in woodworking, metalworking, plumbing and electrical applications

Securing angle brackets, panels, metal sheets, cable ducts, battens etc. | Can be used in concrete, solid brick, sand-lime brick, aerated concrete, vertically perforated brick, lightweight concrete, hollow sand-lime brick, screed, gypsum panels | Any attachments for light and medium loads in woodworking, metalworking, plumbing and electrical applications | Securing angle brackets, panels, metal sheets, cable ducts, battens etc.
Tehnical Information
Anchor diameter: 10 mm | Anchor length (l): 120 mm | Max. attachment height (t fix): 70 mm | Embedding depth (h nom): 50 mm | Nominal drill-bit diameter (d 0): 10 mm | Drill hole depth (h 1): 55 mm | Hole diameter in component (d f): 10 mm | Material of nail: Steel | Surface: Zinc plated | Internal drive: Z3
