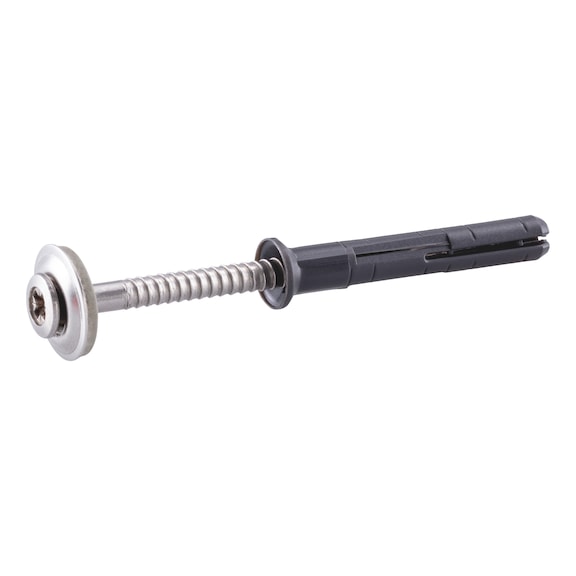

With fast assembly and proven performance, this product offers an all-round solution for fastening light loads using in-place installation. Wall plug body with countersunk collar, nail made from A2 stainless steel with sealing washer | Quick, cost-effective installation

Can be removed via drive in screw head

Pre-assembled with matching screw and sealing washer

Suitable for in-place installation

Defined integrated hammer-in stop prevents premature expansion

For countersunk and protruding finish

Resistant to UV rays

Rot-resistant (plastic anchor made of high-quality polyamide)

Halogen-free | Quick, cost-effective installation | Can be removed via drive in screw head | Pre-assembled with matching screw and sealing washer | Suitable for in-place installation | Defined integrated hammer-in stop prevents premature expansion | For countersunk and protruding finish | Resistant to UV rays | Rot-resistant (plastic anchor made of high-quality polyamide) | Halogen-free
Application
Application area | Can be used in concrete and masonry

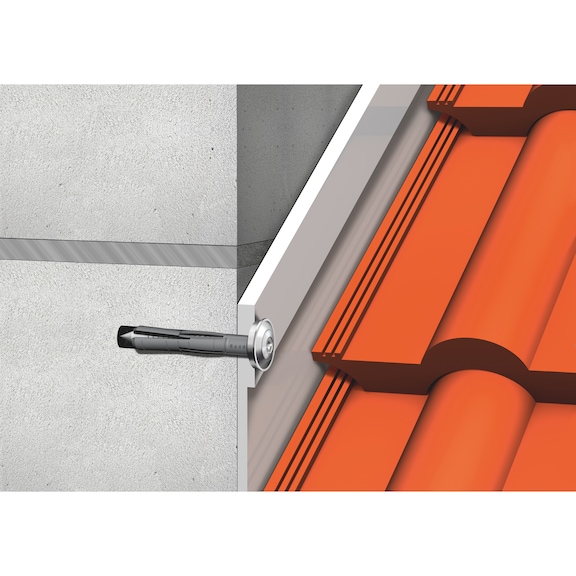

For any light-load fittings in interior finishing as well as wood, metal, plumbing, sanitary and electrical applications, e.g. securing roof flashings and metal sheets or sealing anchor holes | Can be used in concrete and masonry | For any light-load fittings in interior finishing as well as wood, metal, plumbing, sanitary and electrical applications, e.g. securing roof flashings and metal sheets or sealing anchor holes
Tehnical Information
Anchor diameter: 6 mm | Anchor length (l): 40 mm | Max. attachment height (t fix): 20 mm | Embedding depth (h nom): 30 mm | Nominal drill-bit diameter (d 0): 6 mm | Drill hole depth (h 1): 35 mm | Hole diameter in component (d f): 6.5 mm | Material of nail: Stainless steel A2 | Surface: Plain | Washer diameter: 20 mm | Internal drive: Z2
