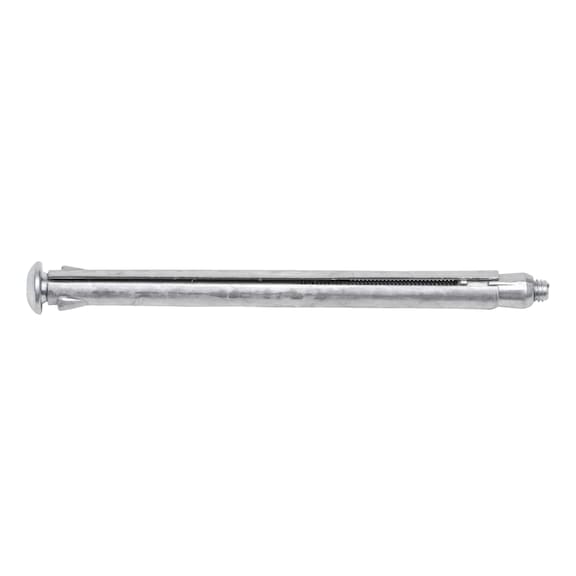

For window mounting in all solid materials, small head diameter for profiles with narrow bottom rebate. Pan head screw, TX20 drive | The small head diameter is ideal for profiles with a narrow bottom rebate

Fast, economical push-through installation

Tension-free spaced installation

Suitable for machine insertion using TX20 drive

Captive die cast zinc cone

Locking cam for hollow profiles and as an anti-rotation device

Small drilling diameter, quick drilling in concrete

Metal frame anchor for light loads

Good fitness for purpose with concrete, solid brick masonry, natural stone surfaces

Sleeve: Sheet steel, Al/Zn coating

Screw: Steel, white zinc-plated

Cone: Die cast zinc | The small head diameter is ideal for profiles with a narrow bottom rebate | Fast, economical push-through installation | Tension-free spaced installation | Suitable for machine insertion using TX20 drive | Captive die cast zinc cone | Locking cam for hollow profiles and as an anti-rotation device | Small drilling diameter, quick drilling in concrete | Metal frame anchor for light loads | Good fitness for purpose with concrete, solid brick masonry, natural stone surfaces | Sleeve: Sheet steel, Al/Zn coating | Screw: Steel, white zinc-plated | Cone: Die cast zinc | Notice | Installation guidelines/RAL Quality Assurance Association: | The fixture must safely transfer all standard forces affecting the window to the structure. This means the total load must be calculated from the total of the window load, wind load and working load (see DIN 1055). The currently applicable building regulations stipulate that buildings and their components must be planned in such a way that they do not endanger human life and health or pose a risk to public safety. Attachment of the windows must also comply with this criterion. We recommend anchors 51, 52, 53 and 55 for this application. | Window walls in accordance with DIN 18056: | This standard applies to window walls with an area of at least 9 m² and a minimum side length of 200 cm, comprising a support structure (frame, jambs, crossbars) with fillings (e.g. glazing). This standard does not apply to walls made from glass blocks. We recommend anchors with construction product approval for this application. | Drill the hole
Install anchor
Tighten screw
Cover cap SIT | Drill the hole | Drill the hole | Install anchor | Install anchor | Tighten screw | Tighten screw | Cover cap SIT | Cover cap SIT
Application
Application area | Suitable for attaching window and door frames made of wood, plastic and aluminium | Especially suitable for use in solid surfaces | Plastic and aluminium profiles with narrow bottom rebate up to 13 mm in width
Tehnical Information
Anchor diameter: 8 mm | Anchor length (l) (l): 92 mm | Drive type: Internal TX | Hole diameter in component (d f): 8.5 mm | Nominal drill-bit diameter (d 0): 8 mm | Embedding depth (h nom): 30 mm | Surface: Sendzimir galvanized | Material: Steel | Drill hole depth (h 1): 35 mm | DIN: 18056 | Head type: Pan head | Max. attachment height (t fix): 60 mm | Internal drive: TX20 | Anchor diameter [mm]: 8 | Solid brick: 0,4 | Vertically perforated brick: Max. 0.15 depending on the shape and strength of the bricks | Hollow sand-lime brick: 0,3 | Aerated concrete: 0,1 | Solid brick: 0,3 | Vertically perforated brick: Max. 0.4 depending on the shape and strength of the bricks | Hollow sand-lime brick: 0,3 | Aerated concrete: 0,2
