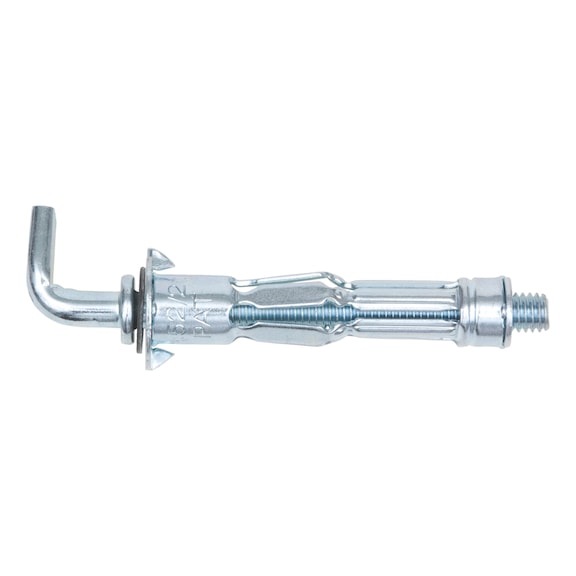

The proven solution for secure fixtures in cavity walls. With screw hook for attaching furniture of all kinds | Excellent holding power due to spreading supporting elements with large contact radius

Simple setting with associated mounting pliers

Pre-assembled with screw hook

Anti-rotation lock on the collar prevents movement in the drill hole

Screw hook can be loosened without loss of holding power | Excellent holding power due to spreading supporting elements with large contact radius | Simple setting with associated mounting pliers | Pre-assembled with screw hook | Anti-rotation lock on the collar prevents movement in the drill hole | Screw hook can be loosened without loss of holding power | Notice | The standard screw belonging to the anchor can be changed for another fastener with a metric thread of the same size after the anchor has been expanded, e.g. eyelet, screw with special head, A2/A4 brass screw, threaded rod etc. | On hard substrates, such as tiles, the lugs on the collar (anti-rotation lock) must be bent straight. | Pushing the front lever on the ratchet pliers releases the ratchet pliers again. | Application area | Wall mirror | Wall mirror | Wall mirror | Create the drill hole
Install anchor
Expand anchor fully with pliers
Secure component | Create the drill hole | Create the drill hole | Create the drill hole | Install anchor | Install anchor | Install anchor | Expand anchor fully with pliers | Expand anchor fully with pliers | Expand anchor fully with pliers | Secure component | Secure component | Secure component
Application
Application area | The anchor for secondary attachments in hollow and lightweight construction walls made of panel materials, and in hollow brick ceilings or hollow core ceilings up to a maximum thickness of 32 mm, behind which is a cavity

For attaching furniture or furnishings such as shelves or picture frames. | The anchor for secondary attachments in hollow and lightweight construction walls made of panel materials, and in hollow brick ceilings or hollow core ceilings up to a maximum thickness of 32 mm, behind which is a cavity | For attaching furniture or furnishings such as shelves or picture frames.
Tehnical Information
Type description: W-MH/SH | Thread type x anchor diameter: M6 | Design: With screw hook | Min./max. board thickness/mirror thickness (d a): 5-16 mm | Material: Steel | Nominal drill-bit diameter (d 0): 12 mm | Surface: Zinc plated | Sleeve length (lHü): 53 mm | Screw length: 75 mm | Through-hole in the component to be connected (d f): 7 mm | Anchor diameter [mm]: M6
