Description
Specification
For injection systems Allrounder WIT-VM 250, masonry with perforated sleeve SH and Concrete Multi WIT-UH 300 and Pure Epoxy WIT-PE 1000. A4 stainless steel | The anchor rod is covered by the following approvals/assessments: | Injection system ALLROUNDER WIT-VM 250, masonry: ETA-16/0757, ETA-20/0854
Injection system WIT-Nordic, masonry: ETA-16/0757
Injection system CONCRETE-MULTI WIT-UH 300, OPTION 1: ETA-17/0127
Injection system PURE EPOXY WIT-PE 1000, OPTION 1: ETA-19/0542 | Injection system ALLROUNDER WIT-VM 250, masonry: ETA-16/0757, ETA-20/0854 | Injection system WIT-Nordic, masonry: ETA-16/0757 | Injection system CONCRETE-MULTI WIT-UH 300, OPTION 1: ETA-17/0127 | Injection system PURE EPOXY WIT-PE 1000, OPTION 1: ETA-19/0542
Application
Application area | Can be used for the following injection systems: | Injection system ALLROUNDER WIT-VM 250, masonry (SH) – solid brick and perforated brick, aerated concrete
Injection system WIT-Nordic, masonry (SH) – solid brick and perforated brick, aerated concrete
Injection system CONCRETE-MULTI WIT-UH 300, cracked and uncracked concrete
Injection system PURE-EPOXY WIT-PE 1000, cracked and uncracked concrete | Injection system ALLROUNDER WIT-VM 250, masonry (SH) – solid brick and perforated brick, aerated concrete | Injection system WIT-Nordic, masonry (SH) – solid brick and perforated brick, aerated concrete | Injection system CONCRETE-MULTI WIT-UH 300, cracked and uncracked concrete | Injection system PURE-EPOXY WIT-PE 1000, cracked and uncracked concrete | W-VI-IG/A4 (stainless steel A4) can be used in dry indoor areas, outdoors (including in industrial atmospheres and close to the sea) or in wet rooms, provided that no particularly aggressive conditions are present.
Tehnical Information

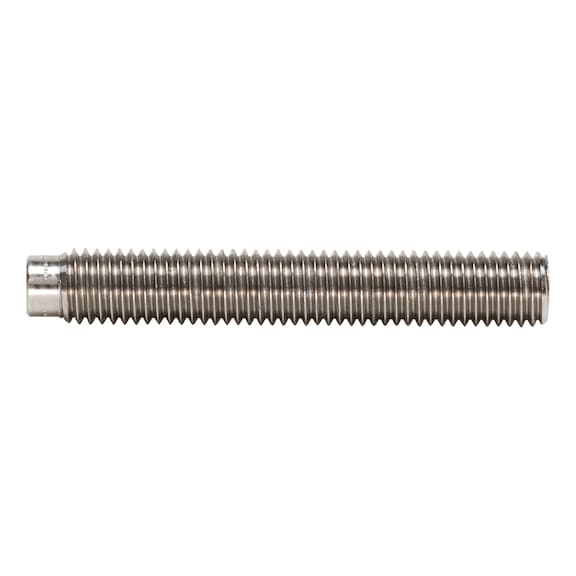

Type description: W-VI-IG/A4 | Female thread: 12 mm | Length: 125 mm | Nominal drill-bit diameter (d 0): 22 mm | Effective anchoring depth (h ef): 125 mm | Drill hole depth (h 0): 125 mm | Min./max. screw-in depth: 12-30 mm | Required injection mortar: WIT-UH 300, WIT-PE 1000 | Approval: ETA-17/0127, ETA-19/0542 | Material: Stainless steel A4, 1.4401 | Surface: Plain
