Description

Specification
For fastening insulation tarpaulins or plastic sheets to wooden frames using a suitable wood screw (e.g. A® 4) | ® | High-quality polypropylene (PP)

Thermally stable from -40 °C to +100 °C

Quick and easy installation

Insulation washer can be used with nail anchors

Insulation washer can be fastened to wood using chipboard screws | High-quality polypropylene (PP) | Thermally stable from -40 °C to +100 °C | Quick and easy installation | Insulation washer can be used with nail anchors | Insulation washer can be fastened to wood using chipboard screws | Drill hole
Insert peg completely through disk into the drill hole
Knock in expansion nail until flush
Finished | Drill hole | Drill hole | Insert peg completely through disk into the drill hole | Insert peg completely through disk into the drill hole | Knock in expansion nail until flush | Knock in expansion nail until flush | Finished | Finished | Insert screw through disk
Screw in screw until flush
Finished | Insert screw through disk | Insert screw through disk | Screw in screw until flush | Screw in screw until flush | Finished | Finished
Application
Application area | Securing tarpaulins and plastic sheets in the construction sector

Base ∅ 50 mm For attaching hard, self-supporting insulation material, e.g. polystyrene

Base ∅ 90 mm: for fastening soft insulation material, e.g. rock wool and glass wool

To be used in concrete and masonry in conjunction with nail anchors ∅ 8 mm

To be used in wood in conjunction with chipboard or wood screws with a min. head ∅ 12 mm | Securing tarpaulins and plastic sheets in the construction sector | Base ∅ 50 mm For attaching hard, self-supporting insulation material, e.g. polystyrene | Base ∅ 90 mm: for fastening soft insulation material, e.g. rock wool and glass wool | To be used in concrete and masonry in conjunction with nail anchors ∅ 8 mm | To be used in wood in conjunction with chipboard or wood screws with a min. head ∅ 12 mm
Tehnical Information

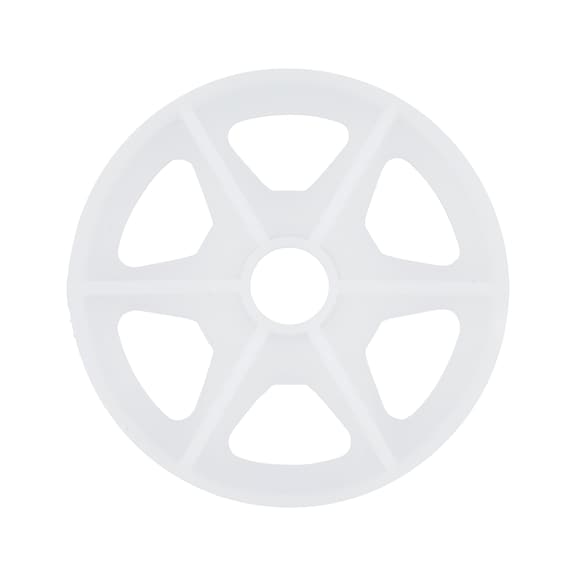

Type description: W-DH | Disc diameter: 50 mm | Inside diameter of hole (d hole): 9 mm | Disc height (h disc): 7 mm | Countersink diameter (d count): 14 mm | Material: PP – Polypropylene | Holder diameter [mm]: 50 and 90 | in conjunction with
chipboard screw: 0.10 washer bends backwards in the event of an overload | in conjunction with
chipboard screw: max. 0.15 depending on the bending movement of the chipboard screw
