Description
Specification

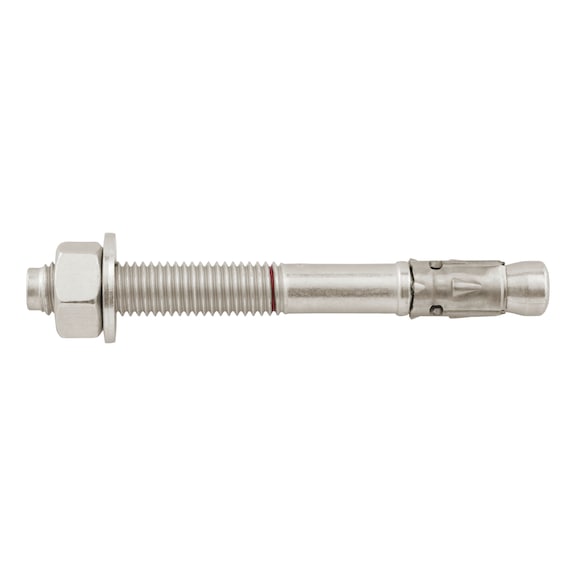

High-performance stud anchors for highest loads in cracked and non-cracked concrete, stainless steel, A4 | Highest load values at low spacing and edge clearances | Extra-large effective anchorage depths maximise the already high load values per anchor | Quick installation with fewer reinforcement hits | Extra-small effective anchorage depths minimise the drilling and setting time | Economical and flexible application | Freely selectable embedment depth allows optimum utilisation of the anchors depending on the embedment depth and application | Minimum edge distance and spacing | Allows for near-edge fixings, small anchor plates and installation in thin concrete parts | For earthquake-proof construction | High performance under seismic action, earthquake performance categories C1 and C2 | Proof of Performance | European Technical Approval ETA-20/0229 for individual attachment, option 1, cracked and non-cracked concrete: | Static or quasi-static exposure (M8 – M16)
Seismic exposure, performance category C1 and C2 (M8–M16)
Fire load R30, R60, R90, R120 | Static or quasi-static exposure (M8 – M16) | Seismic exposure, performance category C1 and C2 (M8–M16) | Fire load R30, R60, R90, R120 | Load-bearing behaviour and fire load (uniform temperature curve) – expert opinion no. GS 6.1/20-018-1: | Fire duration 180 minutes (M8–M16) | Fire duration 180 minutes (M8–M16) | Application area | Heavy steel structures
Post support bracket

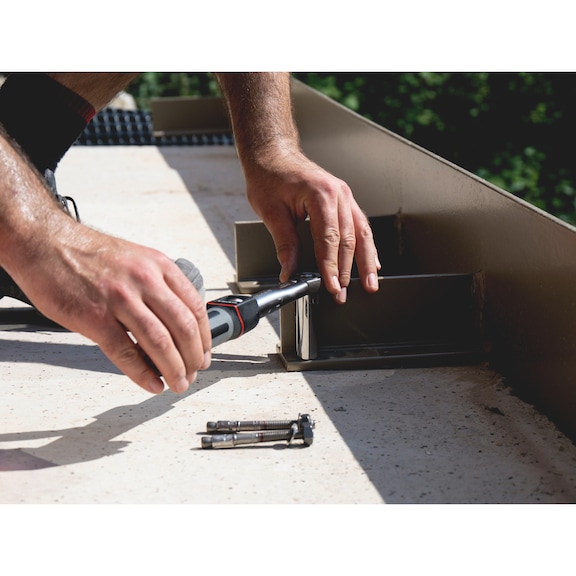

Fastening of railings

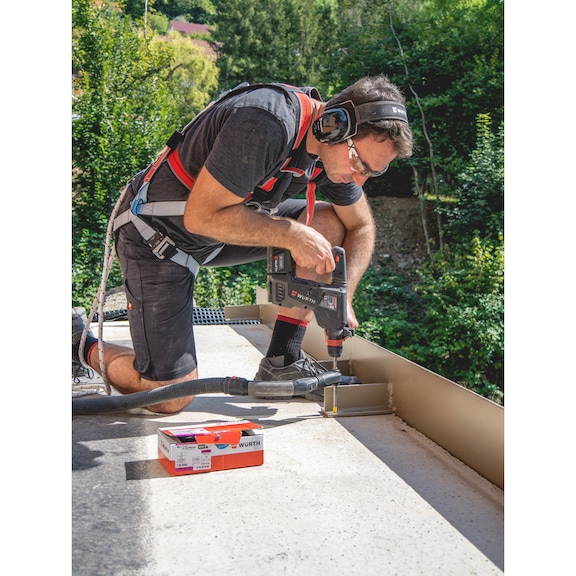

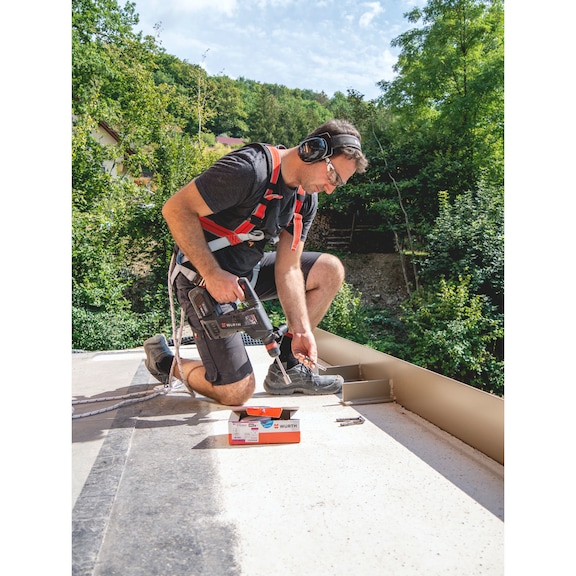

Metal substructures | Heavy steel structures | Heavy steel structures | Post support bracket | Post support bracket | Fastening of railings | Fastening of railings | Metal substructures | Metal substructures | Create the drill hole | Create the drill hole | Create the drill hole | Create the drill hole | European Technical Approval ETA-20/0229 for individual attachment, option 1, cracked and non-cracked concrete: | Static or quasi-static exposure (M8 – M16)
Seismic exposure, performance category C1 and C2 (M8–M16)
Fire load R30, R60, R90, R120 | Static or quasi-static exposure (M8 – M16) | Seismic exposure, performance category C1 and C2 (M8–M16) | Fire load R30, R60, R90, R120 | Load-bearing behaviour and fire load (uniform temperature curve) – expert opinion no. GS 6.1/20-018-1: | Fire duration 180 minutes (M8–M16) | Fire duration 180 minutes (M8–M16)
Application
Application area | Single or multiple mounting with approval | In standard concrete C20/25 to C50/60 (cracked and non-cracked concrete)
Suitable for cotter-pin installation, push-through installation and distance mounting | In standard concrete C20/25 to C50/60 (cracked and non-cracked concrete) | Suitable for cotter-pin installation, push-through installation and distance mounting | Suitable for anchoring medium to heavy loads in concrete: | Mounting of e.g. metal constructions, supports, steel supports, consoles, railings, cable conduits, pipe sections, wooden constructions, beams, joist brackets, etc. | Fastenings under seismic conditions in earthquake areas | Fastenings under exposure to fire | W-FAZ PRO/A4, stainless steel A4, may be used in dry indoor areas and for all other conditions in accordance with EN 1993-1-4:2015-10 appendix A, table A.3: CRC I-III
Tehnical Information
Metric anchor diameter: M10 | Anchor length (l): 100 mm | Min./max. height of the fixture (t fix): 0-40 mm | Attachment height standard (t fix,std): 20 mm | Min. effective anchoring depth (h ef, min): 40 | Max. effective anchoring depth (h ef, max): 80 mm | Effective anchoring depth Standard (h ef, std): 60 mm | Usable length (B): 80 mm | Attachment height variable (t fix ,var): B – hef | Disc diameter x disc thickness: 20 x 2 mm | Width across flats: 17 mm | Nominal drill-bit diameter (d 0): 10 mm | Drill hole depth variable (h 0, var): hef + 9 | Min. drill hole depth (h 0, min): 49 mm | Max. drill hole depth (h 0, max): 89 mm | Drill hole depth Standard (h 0, std): 69 mm | Material: Stainless steel A4 | Surface: Coated | Torque during anchoring (T inst): 40 Nm | Through-hole in the component to be connected (d f): 12 mm | Thread type x anchor diameter x thread length (L th): M10 x 55 | Approval: ETA-20/0229 | Seismology C1: Yes | Seismology C2: Yes | : In non-cracked concrete
