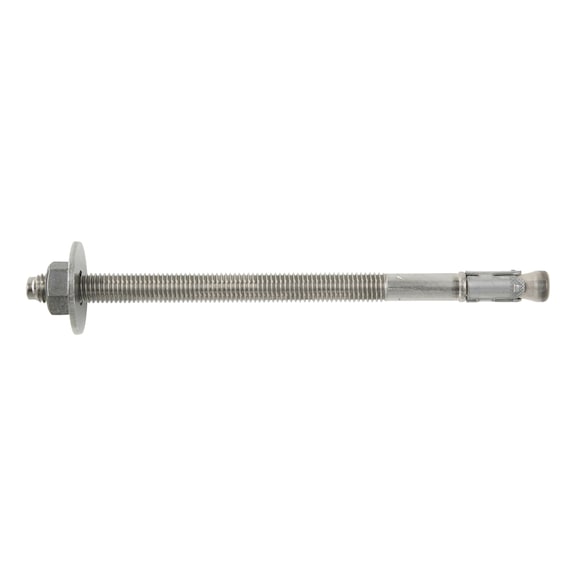

Bolt anchor for high loads in cracked and non-cracked concrete. Stainless steel A4 | High load-bearing capacities, low axial and edge clearance

Immediate load-bearing capacity – no waiting

Time-saving in-place installation

Torque-controlled expansion anchor made of stainless steel A4

Reduced effective anchorage depth

Minimised drilling and time requirements

Flexible application | High load-bearing capacities, low axial and edge clearance | Immediate load-bearing capacity – no waiting | Time-saving in-place installation | Torque-controlled expansion anchor made of stainless steel A4 | Reduced effective anchorage depth | Minimised drilling and time requirements | Flexible application | Proof of Performance | Approval ETA-99/0011 for individual attachment, option 1, cracked and non-cracked concrete, seismic performance category C1 and C2 (M8–M20)

Fire resistance (M8–M16): F30, F60, F90 and F120; exposure to fire according to DIN 4102-2:1977-09 (uniform temperature-time curve)

Fire resistance: R30, R60, R90 and R120; TR020 (included in ETA-99/0011) | Approval ETA-99/0011 for individual attachment, option 1, cracked and non-cracked concrete, seismic performance category C1 and C2 (M8–M20) | Fire resistance (M8–M16): F30, F60, F90 and F120; exposure to fire according to DIN 4102-2:1977-09 (uniform temperature-time curve) | Fire resistance: R30, R60, R90 and R120; TR020 (included in ETA-99/0011) | Application area | Create the drill hole
10
Knock in anchor with mason’s mallet or machine setting tool
Set anchor in place
Apply torque | Create the drill hole | Create the drill hole | Create the drill hole | 10 | 10 | 10 | Knock in anchor with mason’s mallet or machine setting tool | Knock in anchor with mason’s mallet or machine setting tool | Knock in anchor with mason’s mallet or machine setting tool | Set anchor in place | Set anchor in place | Set anchor in place | Apply torque | Apply torque | Apply torque | Approval ETA-99/0011 for individual attachment, option 1, cracked and non-cracked concrete, seismic performance category C1 and C2 (M8–M20)

Fire resistance (M8–M16): F30, F60, F90 and F120; exposure to fire according to DIN 4102-2:1977-09 (uniform temperature-time curve)

Fire resistance: R30, R60, R90 and R120; TR020 (included in ETA-99/0011) | Approval ETA-99/0011 for individual attachment, option 1, cracked and non-cracked concrete, seismic performance category C1 and C2 (M8–M20) | Fire resistance (M8–M16): F30, F60, F90 and F120; exposure to fire according to DIN 4102-2:1977-09 (uniform temperature-time curve) | Fire resistance: R30, R60, R90 and R120; TR020 (included in ETA-99/0011)
Application

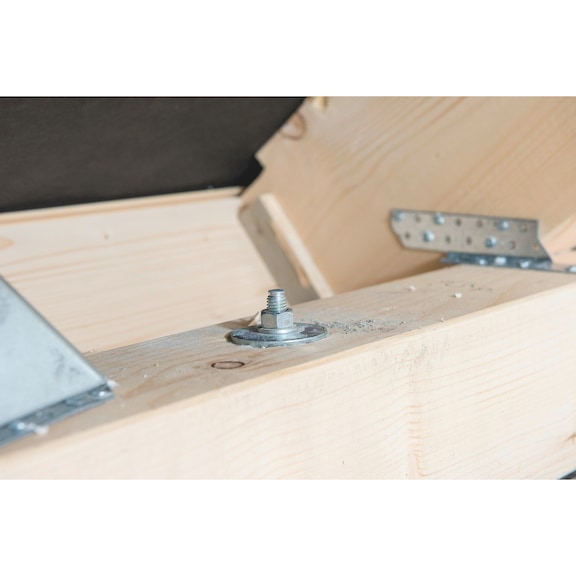

Application area | Individual attachment with approval | Standard concrete C20/25 to C50/60 (cracked and non-cracked concrete, seismic performance category C1 and C2) | For the attachment, e.g. of metal structures, metal profiles, brackets, footplates, supports, cable conduits, pipes, railings, wooden structures, roof beams etc. | Individual attachment without approval | Can be used in concrete < C20/25 and compression-proof natural stone | W-FAZ/A4 (A4 stainless steel) approved for use in dry indoor areas and also outdoors (including industrial atmospheres and coastal areas) or in damp rooms, provided that no particularly aggressive conditions are present. Tehnical Information
Metric anchor diameter: M12 | Anchor length (l): 110 mm | Attachment height (t fix): 15 mm | Max. attachment height reduced (t fix, red): 35 mm | Effective anchoring depth (h ef): 70 mm | Effective anchoring depth reduced (h ef, red): 50 mm | Disc diameter x disc thickness: 37 x 3 mm | Width across flats: 19 mm | Nominal drill-bit diameter (d 0): 12 mm | Drill hole depth (h 1): 90 mm | Drill hole depth reduced (h 1, red): 70 mm | Material: Stainless steel A4, 1.4401 | Torque during anchoring (T inst): 50 Nm | Through-hole in the component to be connected (d f): 14 mm | Approval: ETA-99/0011
