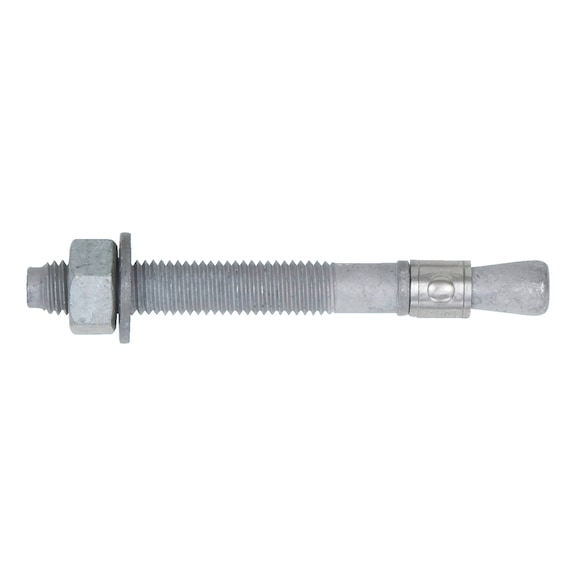

Stud anchor for standard applications in non-cracked concrete. Hot-dip galvanised steel | Time-saving push-through installation

Immediate load-bearing capacity — no waiting

Torque-controlled expanding anchor made from hot dip galvanised steel

Two anchorage depths — wide range of applications | Time-saving push-through installation | Immediate load-bearing capacity — no waiting | Torque-controlled expanding anchor made from hot dip galvanised steel | Two anchorage depths — wide range of applications | Proof of Performance | ETA-02/0001 for individual fixing point, option 7, uncracked concrete | Application area | Heavy steel structures
Fence systems
Post support bracket | Heavy steel structures | Heavy steel structures | Fence systems | Fence systems | Post support bracket | Post support bracket | Create the drill hole
10
Knock in anchor with mason’s mallet or machine setting tool
Set anchor in place
Apply torque | Create the drill hole | Create the drill hole | Create the drill hole | 10 | 10 | 10 | Knock in anchor with mason’s mallet or machine setting tool | Knock in anchor with mason’s mallet or machine setting tool | Knock in anchor with mason’s mallet or machine setting tool | Set anchor in place | Set anchor in place | Set anchor in place | Apply torque | Apply torque | Apply torque | ETA-02/0001 for individual fixing point, option 7, uncracked concrete
Application
Application area | Individual fixing point: Normal weight concrete C20/25 to C50/60 (uncracked concrete)

Suitable for fastening metal structures, metal profiles, brackets, base plates, supports, cable conduits, pipes, wooden structures, beams, purlins etc.

For use in concrete < C20/25 and pressure-resistant natural stone (without approval) The anchor may be used for anchorages with predominantly static loads (e.g. tare weight, fittings, stored materials) or quasi-static loads (e.g. façades, staircase railings) W-FA/F may only be used in dry indoor conditions | Individual fixing point: Normal weight concrete C20/25 to C50/60 (uncracked concrete) | Suitable for fastening metal structures, metal profiles, brackets, base plates, supports, cable conduits, pipes, wooden structures, beams, purlins etc. | For use in concrete < C20/25 and pressure-resistant natural stone (without approval) | The anchor may be used for anchorages with predominantly static loads (e.g. tare weight, fittings, stored materials) or quasi-static loads (e.g. façades, staircase railings) | W-FA/F may only be used in dry indoor conditions Tehnical Information
Metric anchor diameter: M16 | Anchor length (l): 150 mm | Material: Steel | Surface: Hot dip galvanized | Attachment height (t fix): 30 mm | Max. attachment height reduced (t fix, red): 48 mm | Attachment height (t fix 2): 48 mm | Drill hole depth (h 1): 110 mm | Drill hole depth reduced (h 1, red): 95 mm | Drill hole depth (h 1.2): 95 mm | Effective anchoring depth (h ef): 82 mm | Effective anchoring depth reduced (h ef, red): 64 mm | Effective anchoring depth (h ef 2): 64 mm | Embedding depth (h nom): 102 mm | Embedding depth (h nom,red): 84 mm | Width across flats: 24 mm | Nominal drill-bit diameter (d 0): 16 mm | Torque during anchoring (T inst): 90 Nm | Through-hole in the component to be connected (d f): 18 mm | Thread length (L th): 90 mm | Approval: ETA-02/0001
