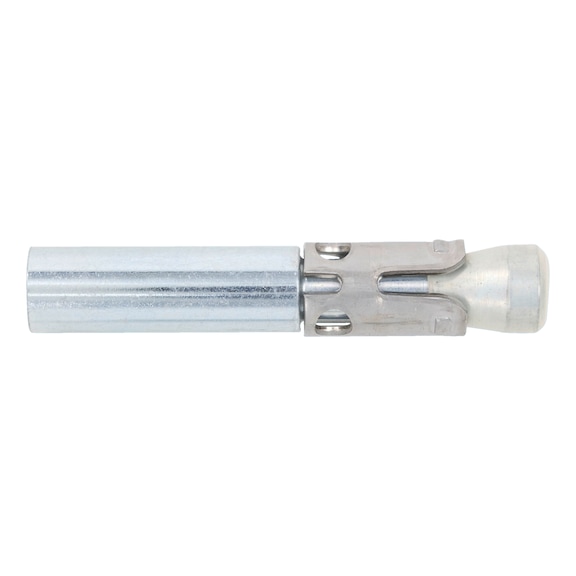

Female thread bolt anchor for high loads in cracked and non-cracked concrete, ideal for a clean finish on the attached part. Zinc-plated steel | High load-bearing capacity, low centre to centre and edge clearance

Immediate load-bearing capacity – no waiting

Torque-controlled expanding anchor made from galvanised steel

Safe expansion in cracked concrete owing to fixing anchor cone with patented plastic coating

Countersunk screws ensure an elegant appearance for visible anchorages combined with high load-bearing capacity (e.g. railings)

Also suitable for temporary anchorages (cotter-pin installation, e.g. flexible stadium seating – flush with surface to eliminate risk of injury) | High load-bearing capacity, low centre to centre and edge clearance | Immediate load-bearing capacity – no waiting | Torque-controlled expanding anchor made from galvanised steel | Safe expansion in cracked concrete owing to fixing anchor cone with patented plastic coating | Countersunk screws ensure an elegant appearance for visible anchorages combined with high load-bearing capacity (e.g. railings) | Also suitable for temporary anchorages (cotter-pin installation, e.g. flexible stadium seating – flush with surface to eliminate risk of injury) | Proof of Performance | ETA-99/0011 for individual attachment, option 1, cracked and non-cracked concrete

Fire resistance: R30, R60, R90, R120; Technical Report TR020 (included in ETA-99/0011) | ETA-99/0011 for individual attachment, option 1, cracked and non-cracked concrete | Fire resistance: R30, R60, R90, R120; Technical Report TR020 (included in ETA-99/0011) | Notice | The W-FAZ-IG Fixanchor must be inserted using the appropriate approved setting tools (anchor system)

Hexagon head bolt, countersunk head screws, washers, countersunk washers and nuts have a special coating and are only admissible in the anchor system in accordance with ETA-99/0011. Therefore, please order these separately

Threaded rods may only be used if the conditions specified in approval ETA-99/0011 (material quality, dimensions, mechanical properties) are met

The torque required for anchorage can be applied with Würth torque wrenches and suitable attachments (open-end socket spanners) | The W-FAZ-IG Fixanchor must be inserted using the appropriate approved setting tools (anchor system) | Hexagon head bolt, countersunk head screws, washers, countersunk washers and nuts have a special coating and are only admissible in the anchor system in accordance with ETA-99/0011. Therefore, please order these separately | Threaded rods may only be used if the conditions specified in approval ETA-99/0011 (material quality, dimensions, mechanical properties) are met | The torque required for anchorage can be applied with Würth torque wrenches and suitable attachments (open-end socket spanners) | Application area | Create the drill hole
Clean the drill hole

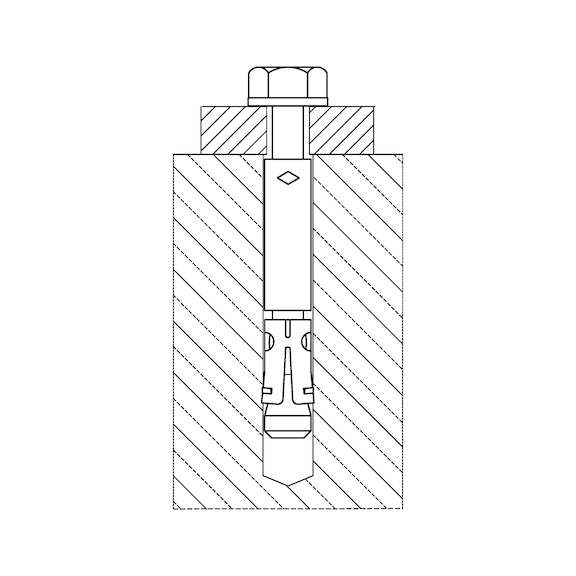

Knock in anchor with setting tool
Apply torque | Create the drill hole | Create the drill hole | Create the drill hole | Clean the drill hole | Clean the drill hole | Clean the drill hole | Knock in anchor with setting tool | Knock in anchor with setting tool | Knock in anchor with setting tool | Apply torque | Apply torque | Apply torque | ETA-99/0011 for individual attachment, option 1, cracked and non-cracked concrete

Fire resistance: R30, R60, R90, R120; Technical Report TR020 (included in ETA-99/0011) | ETA-99/0011 for individual attachment, option 1, cracked and non-cracked concrete | Fire resistance: R30, R60, R90, R120; Technical Report TR020 (included in ETA-99/0011)
Application
Application area | Individual attachment with approval | Standard concrete C20/25 to C50/60 (cracked and non-cracked concrete) | E.g. metal structures, metal profiles, brackets, footplates, supports, cable conduits, pipes, railings, wooden structures, beams, stadium seating etc. | Individual attachment without approval | Can be used in concrete < C20/25 and compression-proof natural stone | May only be used in dry indoor areas Tehnical Information
Metric anchor diameter: M8 | Anchor length (l): 62 mm | Min. screw-in depth of threaded rod (Lsd): 12 mm | Material: Steel | Surface: Zinc plated | Nominal drill-bit diameter (d 0): 10 mm | Drill hole depth (h 1): 75 mm | Effective anchoring depth (h ef): 58 mm
