Description

Specification

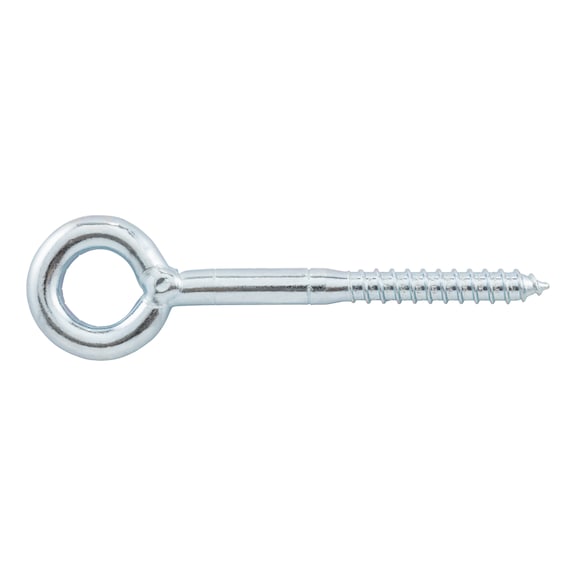

For attaching scaffolding in conjunction with suitable plastic anchors. Steel 4.8, zinc plated blue | Anchor sleeve and eyelet screw are perfectly coordinated to guarantee maximum safety

Eyelet screw, steel 4.8 | Anchor sleeve and eyelet screw are perfectly coordinated to guarantee maximum safety | Eyelet screw, steel 4.8 | Notice | The eyelet screw must be screwed into the anchor until the screw tip protrudes from the front of the anchor by at least 1x the screw diameter. This is the only way to achieve the maximum load capacity

Drill hollow block brick without hammer mechanism

Using HM multi-purpose drill bits allows for a much better drill hole to be produced in perforated brick and much higher extraction values

Hollow block brick should generally be drilled without a hammer mechanism | The eyelet screw must be screwed into the anchor until the screw tip protrudes from the front of the anchor by at least 1x the screw diameter. This is the only way to achieve the maximum load capacity | Drill hollow block brick without hammer mechanism | Using HM multi-purpose drill bits allows for a much better drill hole to be produced in perforated brick and much higher extraction values | Hollow block brick should generally be drilled without a hammer mechanism
Application
Application area | When attaching free-standing scaffolding, GR dia. 14 must be used with eyelet screw GS 12

Suitable for anchoring in solid materials, concrete, solid brick and rock, excluding lightweight concrete

For perforated brick and lightweight or aerated concrete, we recommend using our HBR dia. 14 plastic frame anchor with large expansion zone in conjunction with a GS 10 eyelet screw, and using an HM multi-purpose drill bit for the drill hole to ensure optimum holding power | When attaching free-standing scaffolding, GR dia. 14 must be used with eyelet screw GS 12 | Suitable for anchoring in solid materials, concrete, solid brick and rock, excluding lightweight concrete | For perforated brick and lightweight or aerated concrete, we recommend using our HBR dia. 14 plastic frame anchor with large expansion zone in conjunction with a GS 10 eyelet screw, and using an HM multi-purpose drill bit for the drill hole to ensure optimum holding power
Tehnical Information
Screw diameter (ds): 12 mm | Screw length: 120 mm | Embedding depth (h s): 70 mm | Nominal drill hole diameter: 14 mm | Drill hole depth (t): 80 mm
