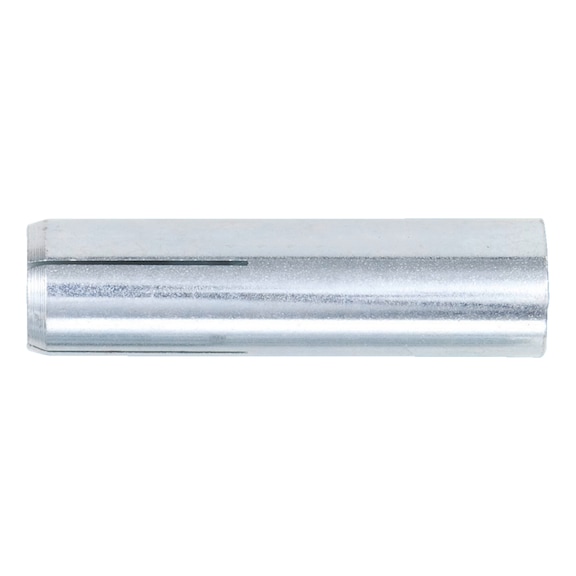

Female thread anchor with metric thread for anchoring in concrete, zinc-plated steel in sizes M12 (for core drills) and DW 15 ( DYWIDAG® female thread DW15) | Quick, cost-effective installation thanks to small drill hole depth

Maximum safety thanks to high load-bearing capacity in non-cracked concrete

Secure mounting using the associated manual expander tool

Installation type: Cotter pin installation

Immediate load-bearing capacity — no waiting | Quick, cost-effective installation thanks to small drill hole depth | Maximum safety thanks to high load-bearing capacity in non-cracked concrete | Secure mounting using the associated manual expander tool | Installation type: Cotter pin installation | Immediate load-bearing capacity — no waiting | Attached part can easily be removed at any time | The attached part can be anchored with a fastening screw or a threaded rod | W-ED M12: | Anchor’s special solid outer wall reliably prevents breaking out of the anchoring base – even in the event of sudden loading from the core drill. To be installed with the specified torque. | W-ED DW15: | Highly versatile: Variable rod lengths and clamping strengths can be used

Thread resistant to soiling

Saves time: No need to apply torque | Highly versatile: Variable rod lengths and clamping strengths can be used | Thread resistant to soiling | Saves time: No need to apply torque | Notice | DYWIDAG® female thread (DYWIDAG® is a registered trademark of Walter Bau AG) | ® | ®
Application
Application area | The anchor may only be used for anchorages with predominantly static loads or quasi-static loads; W-ED M12 (without approval)

Can be used in non-cracked concrete >= C20/25 and compression-resistant natural stone. Higher values are possible for higher concrete strengths

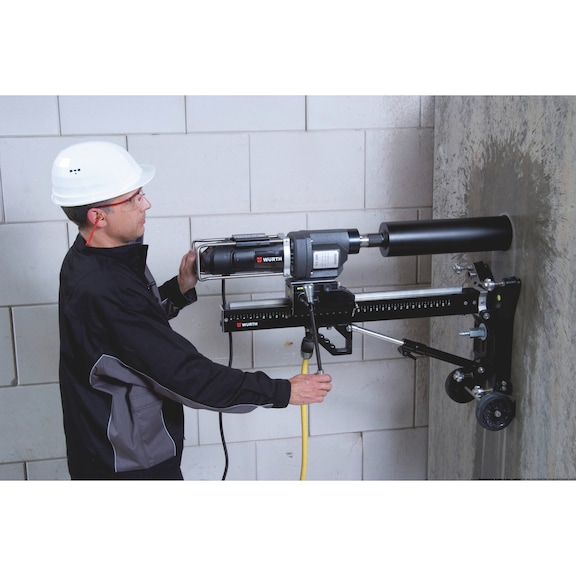

Suitable for anchoring core drills (solid wall plug body) | The anchor may only be used for anchorages with predominantly static loads or quasi-static loads; W-ED M12 (without approval) | Can be used in non-cracked concrete >= C20/25 and compression-resistant natural stone. Higher values are possible for higher concrete strengths | Suitable for anchoring core drills (solid wall plug body) | W-ED DW (unapproved) | Can be used in non-cracked concrete >= 15/20 up to max. C50/60 and compression-resistant natural stone/higher values are possible for higher concrete strengths

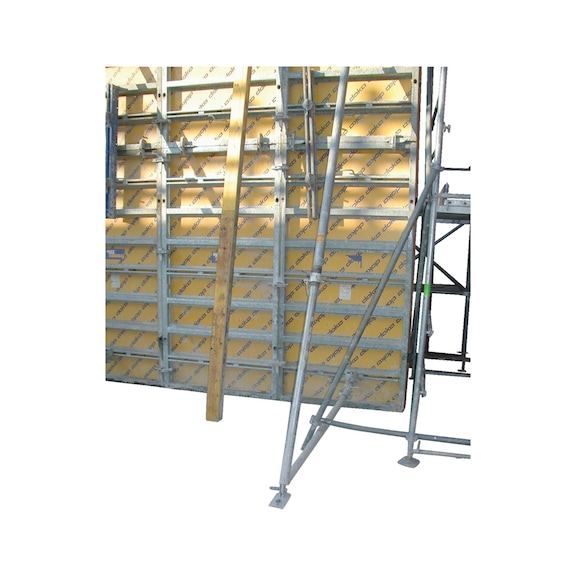

Securing formwork in site-mixed concrete construction

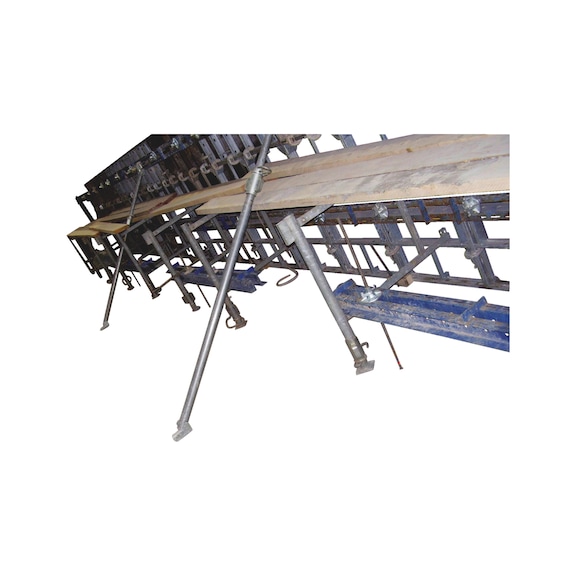

Securing corner elements when concreting upright edges | Can be used in non-cracked concrete >= 15/20 up to max. C50/60 and compression-resistant natural stone/higher values are possible for higher concrete strengths | Securing formwork in site-mixed concrete construction | Securing corner elements when concreting upright edges
Tehnical Information
Anchor diameter: 15 mm | Anchor length (L H): 80 mm | Thread type x anchor diameter: DW15 | Material: Steel | Surface: Zinc plated | Nominal drill-bit diameter (d 0): 22 mm | Drill hole depth (h 0): 85 mm
