Description

Specification

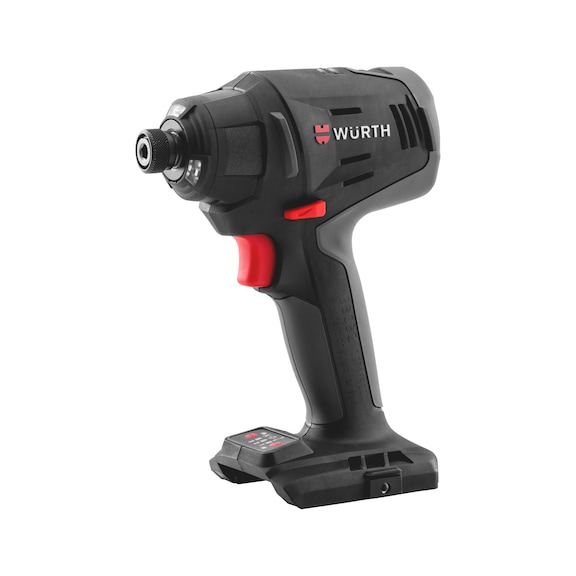

Light and compact cordless impact driver with ¼ inch bit chuck (E 6.3) | Three speed/torque stages, as well as three other modes that can be set for the correct screw connection, enable optimal adjustment for a wide range of applications

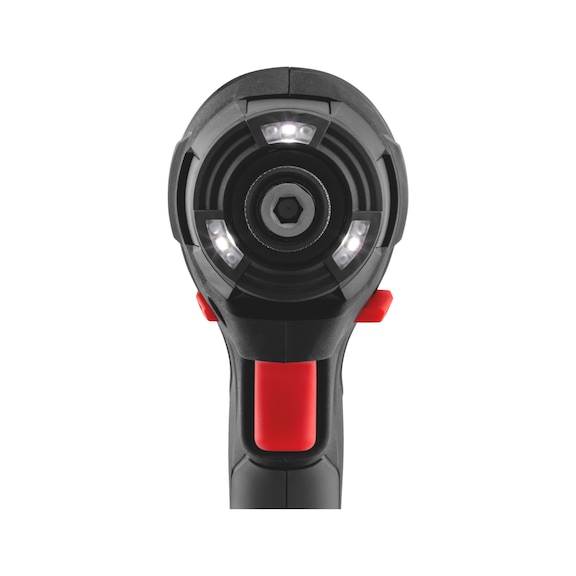

Triple LED on the gear head provides optimum illumination of the working area

The brushless motor with overload protection is low-maintenance, durable and powerful

Effortless and user-friendly working due to the compact and lightweight design with rubberised handle

No recoil or torque effect on the wrist

The integrated quick-change mount for ¼ inch E 6.3 bits allows the bit to be changed quickly and without tools | Three speed/torque stages, as well as three other modes that can be set for the correct screw connection, enable optimal adjustment for a wide range of applications | Triple LED on the gear head provides optimum illumination of the working area | The brushless motor with overload protection is low-maintenance, durable and powerful | Effortless and user-friendly working due to the compact and lightweight design with rubberised handle | No recoil or torque effect on the wrist | The integrated quick-change mount for ¼ inch E 6.3 bits allows the bit to be changed quickly and without tools | Instructions | For tightening metric screw joints with automatic stop.
In clockwise rotation: 30 % of the maximum rotation speed for clean and easy starting, then automatic increase to the maximum rotation speed.

In anti-clockwise rotation: 6 pulse strokes with subsequently increasing rotation speed for gentle loosening of screw joints.
100 % of the maximum rotation speed. Automatic reduction to 70 % of the maximum rotation speed when drilling the sheet, reducing the risk of tearing out the screw. | For tightening metric screw joints with automatic stop. | For tightening metric screw joints with automatic stop. | For tightening metric screw joints with automatic stop. | In clockwise rotation: 30 % of the maximum rotation speed for clean and easy starting, then automatic increase to the maximum rotation speed.

In anti-clockwise rotation: 6 pulse strokes with subsequently increasing rotation speed for gentle loosening of screw joints. | In clockwise rotation: 30 % of the maximum rotation speed for clean and easy starting, then automatic increase to the maximum rotation speed.

In anti-clockwise rotation: 6 pulse strokes with subsequently increasing rotation speed for gentle loosening of screw joints. | In clockwise rotation: 30 % of the maximum rotation speed for clean and easy starting, then automatic increase to the maximum rotation speed. | In anti-clockwise rotation: 6 pulse strokes with subsequently increasing rotation speed for gentle loosening of screw joints. | 100 % of the maximum rotation speed. Automatic reduction to 70 % of the maximum rotation speed when drilling the sheet, reducing the risk of tearing out the screw. | 100 % of the maximum rotation speed. Automatic reduction to 70 % of the maximum rotation speed when drilling the sheet, reducing the risk of tearing out the screw. | 100 % of the maximum rotation speed. Automatic reduction to 70 % of the maximum rotation speed when drilling the sheet, reducing the risk of tearing out the screw.
Application
Application area | Recommended maximum bolt size: M16 with hexagon socket or TX drive. For screwdrivers with hexagon drive, up to a maximum of M8 (size 13). | Impact screwdrivers are not torque drivers. Connections requiring a specific torque must be checked using a torque measuring device after tightening with the impact screwdriver.
Tehnical Information
Type description: ASS 18-1/4 inch COMPACT | Min./max. idle speed: 0-3000 rpm | Min./max. impact rate: 0-4000 rpm | Max. torque for hard screwing application: 295 Nm | Suitable for screw: M5 – M16 | Tool holding device: 1/4-inch hexagon socket | Length: 150 mm | Width: 65 mm | Height: 250 mm | Weight of machine with rechargeable battery: 1.7 kg | Number of rechargeable batteries/batteries: 0 PCS | Rechargeable battery/battery capacity: 0 Ah
