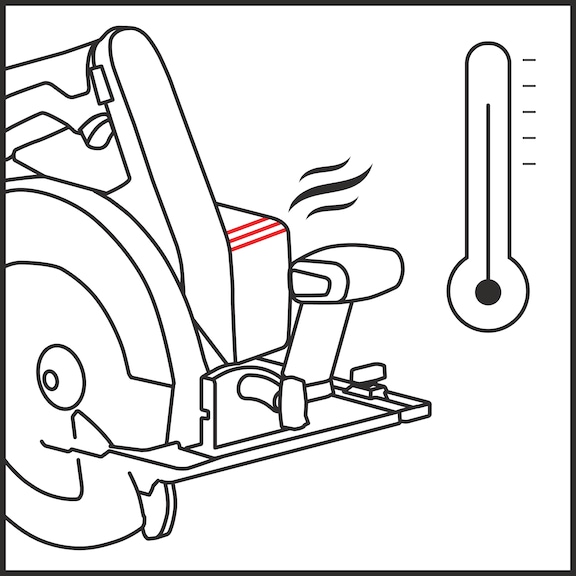

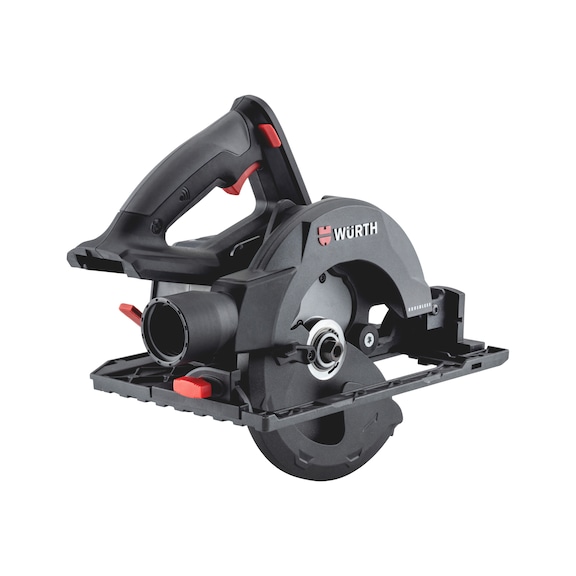

Robust and powerful M-CUBE cordless hand-held circular saw for wood applications | Built-in overload and overtemperature protection functions protect the power tool from excessive stress

Long service life of the motor: Efficient, low-maintenance, brushless EC motor with power reserves

Cover grates over the ventilation slots provide additional protection against chips

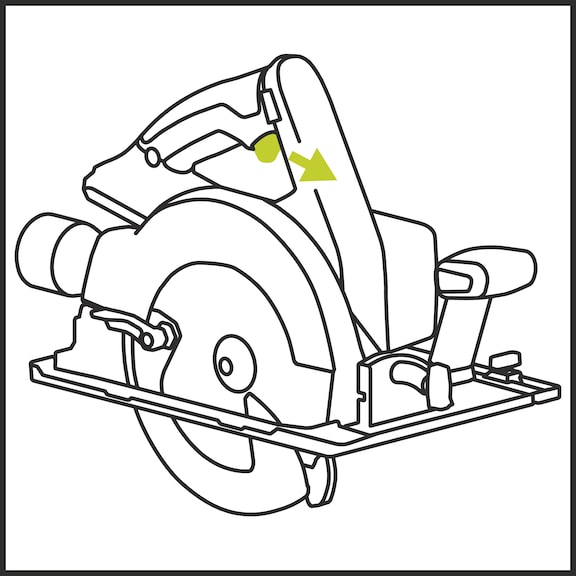

Safe working is assured, as the power tool can only be started up by pressing the release button and the dead man’s switch simultaneously

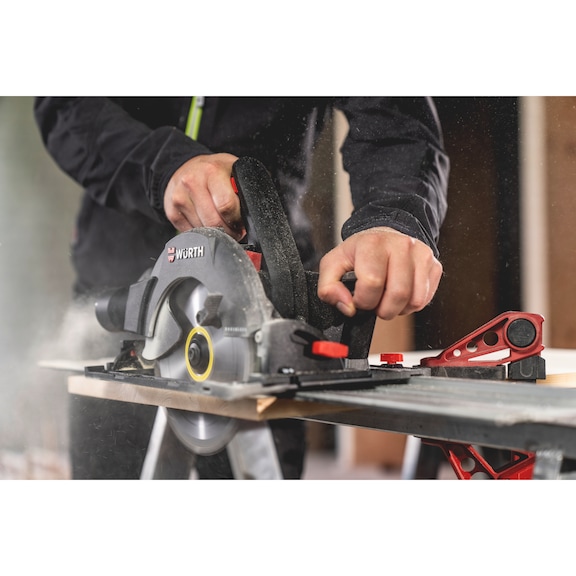

High cutting depth of 68 mm enables universal use on the construction site

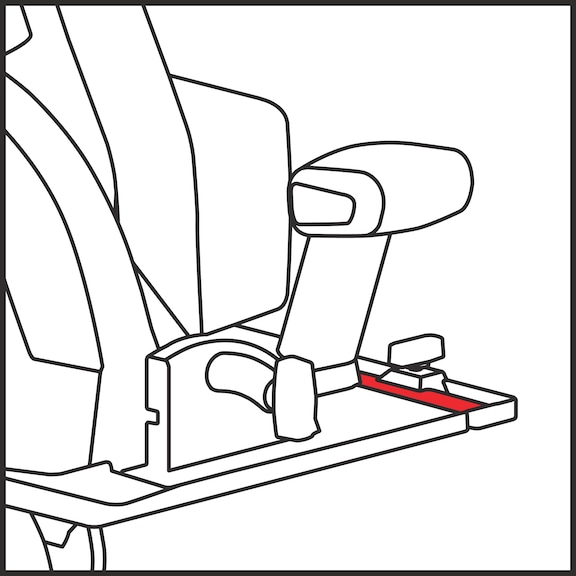

Compatible with guide rail | Built-in overload and overtemperature protection functions protect the power tool from excessive stress | Long service life of the motor: Efficient, low-maintenance, brushless EC motor with power reserves | Cover grates over the ventilation slots provide additional protection against chips | Safe working is assured, as the power tool can only be started up by pressing the release button and the dead man’s switch simultaneously | High cutting depth of 68 mm enables universal use on the construction site | Compatible with guide rail | Application area
Application

Tehnical Information
Nominal voltage: 18 V/DC | Max. idle speed: 4400 rpm | Suitable for bore diameter: 30 mm | Saw blade diameter: 190 mm | Max. cutting depth at 90 degrees: 68 mm | Max. cutting depth at 45 degrees: 50 mm | Base plate length x base plate width: 300 x 185 mm | Weight of machine with rechargeable battery: 4.6 kg | Number of rechargeable batteries/batteries: 0 PCS | Rechargeable battery/battery capacity: 0 Ah
