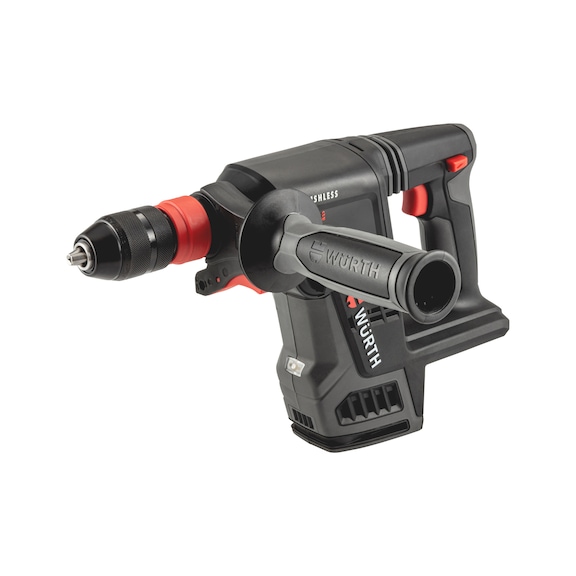

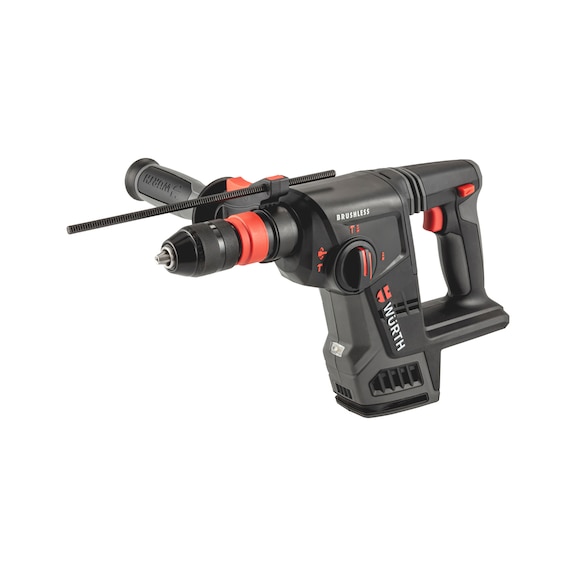

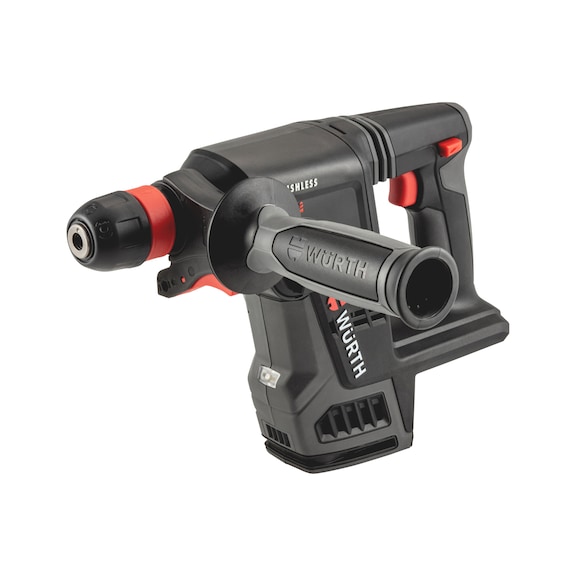

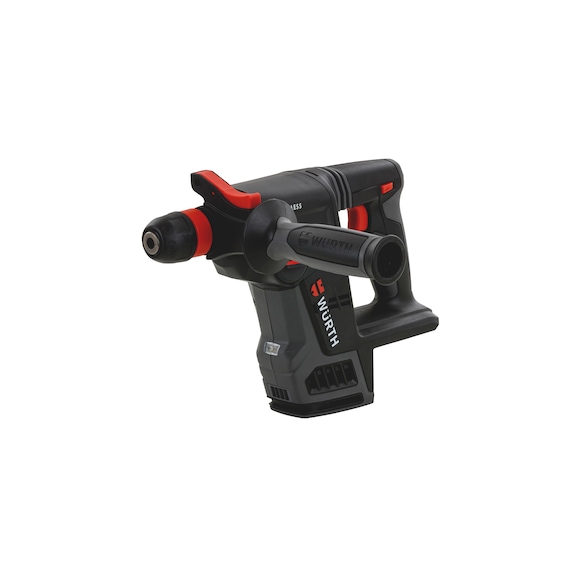

Compact, powerful, brushless cordless hammer drill for medium-heavy drilling and light chiselling work | Extremely compact and ergonomic design ensures pleasant, effortless work

Efficient, low-maintenance, brushless EC motor with power reserves and a long service life

Continuous monitoring of the motor, because in the event of the motor becoming overloaded or jammed, the electronic motor protection function switches the motor off prematurely

Fast adaptation to the respective application, as the function selector switch can be used to easily and quickly switch between rotary hammer drilling and drilling

The SDS-plus mount can be replaced with the supplied quick-action drill chuck quickly, easily and without tools

The optional dust extraction ensures work with low levels of dust | Extremely compact and ergonomic design ensures pleasant, effortless work | Efficient, low-maintenance, brushless EC motor with power reserves and a long service life | Continuous monitoring of the motor, because in the event of the motor becoming overloaded or jammed, the electronic motor protection function switches the motor off prematurely | Fast adaptation to the respective application, as the function selector switch can be used to easily and quickly switch between rotary hammer drilling and drilling | The SDS-plus mount can be replaced with the supplied quick-action drill chuck quickly, easily and without tools | The optional dust extraction ensures work with low levels of dust | Application area
Application

Tehnical Information
Nominal voltage: 18 V/DC | Number of batteries/battery capacity: 0 x 0 Ah | Min./max. idle speed: 0-1400 1/min | Min./max. impact rate: 0-5500 1/min | Impact energy: 2.4 J | Tool holding device: Quick-change holder | Min./max. recommended drilling diameter in concrete: 6-18 mm | Max. drilling diameter in concrete: 26 mm | Max. drilling diameter in steel: 13 mm | Length: 320 mm | Height: 220 mm
