Description

Specification

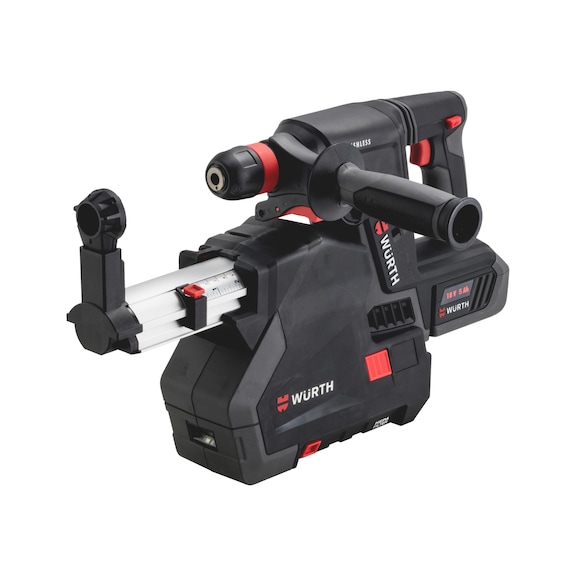

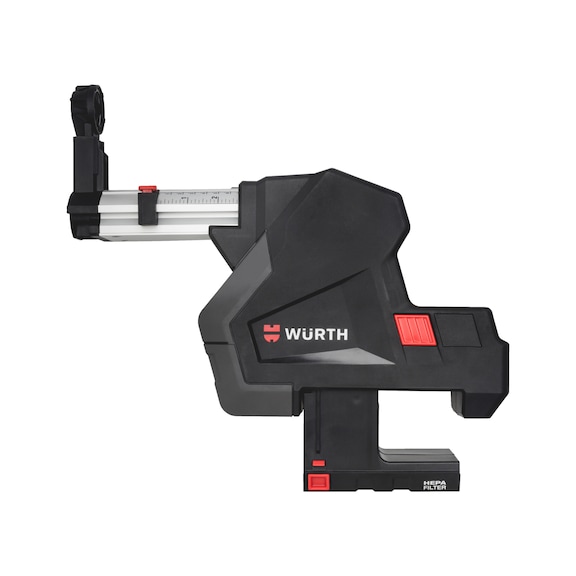

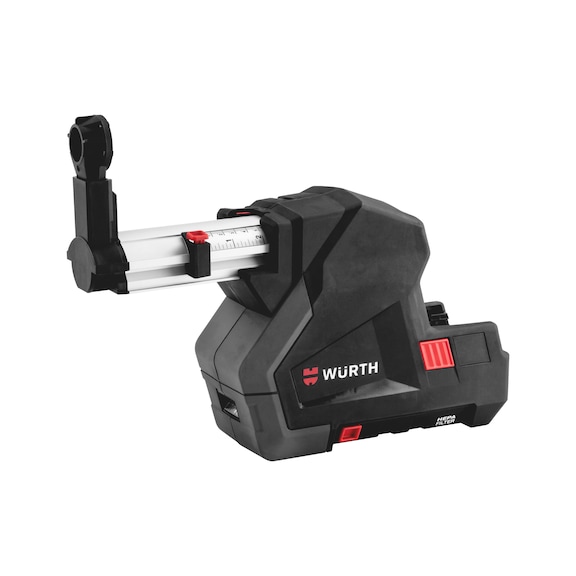

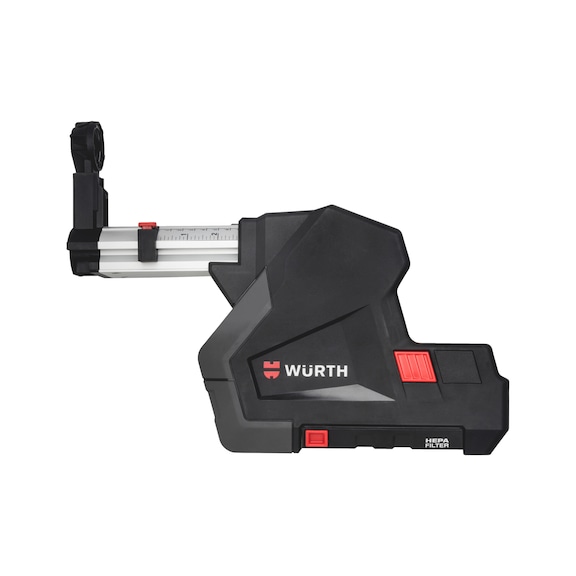

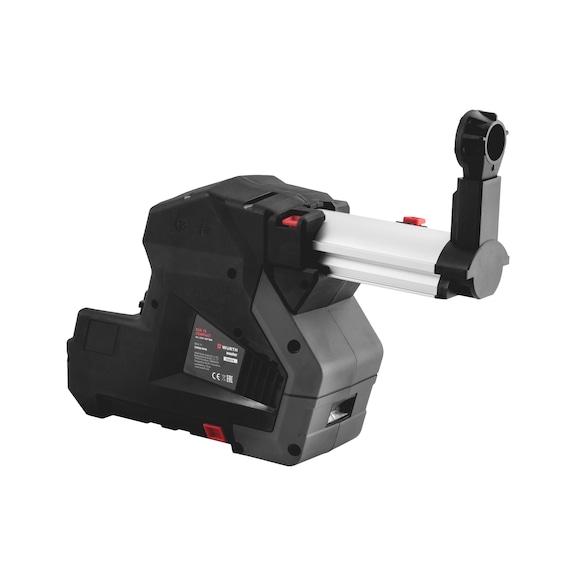

Dust extraction suitable for cordless hammer drill ABH 18 COMPACT | Virtually dust-free working | Protects interiors from soiling by fine drilling dust particles. | No external suction necessary | Vacuum is already equipped with a suction function. Device is supplied with power from the hammer drill via plug contacts. | Automatic suction function | Suction is initiated automatically by actuating the switch on the hammer drill and operates for approx. 5 seconds after drilling. This ensures that drilling dust that would otherwise fall to the ground on removing the drill is also vacuumed up. | Prevents holes from being drilled too deep. | Adjustable depth stop with scale. | Optimally lit working area | LED light on the base also prevents shadows from the telescopic arm.
Application

Tehnical Information
Nominal voltage: 18 V/DC | Suitable for min./max. drill-bit diameter: 4-16 mm | Suitable for min./max. drill-bit length: 100-160 mm | Max. drilling depth per cycle: 85 mm | Weight: 1.6 kg
