Composite mortar for extreme loads in concrete (injection systems F-VIZ) and fatigue-related influences (injection system W-VIZ dynamic) | 2-component reactive resin mortar, styrene-free
150 ml, 330 ml and 420 ml cartridges can be reused by replacing the mixer nozzle or by resealing with the sealing cap
Individual fixing point, cracked and uncracked concrete: Anchor rod W-VIZ-A or internally threaded sleeve W-VIZ-IT
Individual fixing point, dynamic: Anchor rod W-VIZ-A dynamic and W-VIZ-AV dynamic | 2-component reactive resin mortar, styrene-free | 150 ml, 330 ml and 420 ml cartridges can be reused by replacing the mixer nozzle or by resealing with the sealing cap | Individual fixing point, cracked and uncracked concrete: Anchor rod W-VIZ-A or internally threaded sleeve W-VIZ-IT | Individual fixing point, dynamic: Anchor rod W-VIZ-A dynamic and W-VIZ-AV dynamic | Proof of Performance | European Technical Assessment ETA-04/0095: Chemical injection mortar WIT-VIZ + anchor rod W-VIZ-A or female thread sleeve W-VIZ-IG
General technical approval Z-21.3-1909: Injection mortar WIT-VIZ + anchor rod W-VIZ-A dynamic Seismic performance category C1 and C2 (W-VIZ-A M10 to M24) | European Technical Assessment ETA-04/0095: Chemical injection mortar WIT-VIZ + anchor rod W-VIZ-A or female thread sleeve W-VIZ-IG | General technical approval Z-21.3-1909: Injection mortar WIT-VIZ + anchor rod W-VIZ-A dynamic Seismic performance category C1 and C2 (W-VIZ-A M10 to M24) | Application area | Fastening of railings
Robot systems (fatigue-related influences)

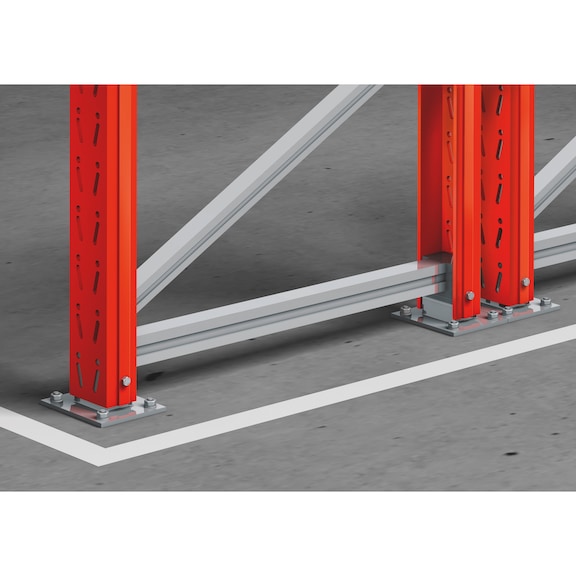

High bays | Fastening of railings | Fastening of railings | Robot systems (fatigue-related influences) | Robot systems (fatigue-related influences) | High bays | High bays | Drill the hole
Drill the hole using a Würth dust extraction drill bit. The drill hole does not require cleaning
Clean the drill hole
2x blow out, 2x mechanical brush out, 2x blow out
Blow out with compressed air from M20 drilled hole
Measure temperature
Screw mixer onto cartridge
Discard the first section of mortar (until the mortar is uniformly coloured – approx. 10 cm)
Fill injection mortar starting from base of drill hole
Press in anchor rod up to drill hole base while turning slightly
Visual check of mortar filling quantity, setting depth marking
Observe the injection mortar curing time
Install component, apply installation torque | Drill the hole | Drill the hole | Drill the hole | Drill the hole using a Würth dust extraction drill bit. The drill hole does not require cleaning | Drill the hole using a Würth dust extraction drill bit. The drill hole does not require cleaning | Drill the hole using a Würth dust extraction drill bit. The drill hole does not require cleaning | Clean the drill hole
2x blow out, 2x mechanical brush out, 2x blow out
Blow out with compressed air from M20 drilled hole | Clean the drill hole
2x blow out, 2x mechanical brush out, 2x blow out
Blow out with compressed air from M20 drilled hole | Clean the drill hole | 2x blow out, 2x mechanical brush out, 2x blow out | Blow out with compressed air from M20 drilled hole | Measure temperature | Measure temperature | Measure temperature | Screw mixer onto cartridge | Screw mixer onto cartridge | Screw mixer onto cartridge | Discard the first section of mortar (until the mortar is uniformly coloured – approx. 10 cm) | Discard the first section of mortar (until the mortar is uniformly coloured – approx. 10 cm) | Discard the first section of mortar (until the mortar is uniformly coloured – approx. 10 cm) | Fill injection mortar starting from base of drill hole | Fill injection mortar starting from base of drill hole | Fill injection mortar starting from base of drill hole | Press in anchor rod up to drill hole base while turning slightly | Press in anchor rod up to drill hole base while turning slightly | Press in anchor rod up to drill hole base while turning slightly | Visual check of mortar filling quantity, setting depth marking | Visual check of mortar filling quantity, setting depth marking | Visual check of mortar filling quantity, setting depth marking | Observe the injection mortar curing time | Observe the injection mortar curing time | Observe the injection mortar curing time | Install component, apply installation torque | Install component, apply installation torque | Install component, apply installation torque | Drill the hole
Drill the hole using a Würth dust extraction drill bit. The drill hole does not require cleaning
Clean the drill hole
2x blow out, 2x mechanical brush out, 2x blow out
Blow out with compressed air from M20 drilled hole
Measure temperature
Screw mixer onto cartridge
Discard the first section of mortar (until the mortar is uniformly coloured – approx. 10 cm)
Fill injection mortar starting from base of drill hole
Push in female-thread anchor while turning slightly
Carry out visual check and comply with composite mortar hardening time
Remove extruded mortar and protective cap
Install component; maximum torque may not be exceeded | Drill the hole | Drill the hole | Drill the hole | Drill the hole using a Würth dust extraction drill bit. The drill hole does not require cleaning | Drill the hole using a Würth dust extraction drill bit. The drill hole does not require cleaning | Drill the hole using a Würth dust extraction drill bit. The drill hole does not require cleaning | Clean the drill hole
2x blow out, 2x mechanical brush out, 2x blow out
Blow out with compressed air from M20 drilled hole | Clean the drill hole
2x blow out, 2x mechanical brush out, 2x blow out
Blow out with compressed air from M20 drilled hole | Clean the drill hole | 2x blow out, 2x mechanical brush out, 2x blow out | Blow out with compressed air from M20 drilled hole | Measure temperature | Measure temperature | Measure temperature | Screw mixer onto cartridge | Screw mixer onto cartridge | Screw mixer onto cartridge | Discard the first section of mortar (until the mortar is uniformly coloured – approx. 10 cm) | Discard the first section of mortar (until the mortar is uniformly coloured – approx. 10 cm) | Discard the first section of mortar (until the mortar is uniformly coloured – approx. 10 cm) | Fill injection mortar starting from base of drill hole | Fill injection mortar starting from base of drill hole | Fill injection mortar starting from base of drill hole | Push in female-thread anchor while turning slightly | Push in female-thread anchor while turning slightly | Push in female-thread anchor while turning slightly | Carry out visual check and comply with composite mortar hardening time | Carry out visual check and comply with composite mortar hardening time | Carry out visual check and comply with composite mortar hardening time | Remove extruded mortar and protective cap | Remove extruded mortar and protective cap | Remove extruded mortar and protective cap | Install component; maximum torque may not be exceeded | Install component; maximum torque may not be exceeded | Install component; maximum torque may not be exceeded | Create the drill hole
Clean drill hole (blow out 2 x, brush out mechanically 2 x, blow out 2 x), with M20 and larger, blow out with pneumatic air (pneumatic air nozzle)
Screw mixer onto cartridge
Before use, press out approx. 10 cm cord. Do not use this initial mortar!
Fill injection mortar starting from base of drill hole
Press in anchor rod up to drill hole base while turning slightly
Observe the injection mortar curing time
After the hardening time, remove extruded mortar
1. Apply installation torque
2. Screw on the locking nut, then tighten with a wrench ¼ to ½ a turn | Create the drill hole | Create the drill hole | Create the drill hole | Clean drill hole (blow out 2 x, brush out mechanically 2 x, blow out 2 x), with M20 and larger, blow out with pneumatic air (pneumatic air nozzle) | Clean drill hole (blow out 2 x, brush out mechanically 2 x, blow out 2 x), with M20 and larger, blow out with pneumatic air (pneumatic air nozzle) | Clean drill hole (blow out 2 x, brush out mechanically 2 x, blow out 2 x), with M20 and larger, blow out with pneumatic air (pneumatic air nozzle) | Screw mixer onto cartridge | Screw mixer onto cartridge | Screw mixer onto cartridge | Before use, press out approx. 10 cm cord. Do not use this initial mortar! | Before use, press out approx. 10 cm cord. Do not use this initial mortar! | Before use, press out approx. 10 cm cord. Do not use this initial mortar! | Fill injection mortar starting from base of drill hole | Fill injection mortar starting from base of drill hole | Fill injection mortar starting from base of drill hole | Press in anchor rod up to drill hole base while turning slightly | Press in anchor rod up to drill hole base while turning slightly | Press in anchor rod up to drill hole base while turning slightly | Observe the injection mortar curing time | Observe the injection mortar curing time | Observe the injection mortar curing time | After the hardening time, remove extruded mortar | After the hardening time, remove extruded mortar | After the hardening time, remove extruded mortar | 1. Apply installation torque
2. Screw on the locking nut, then tighten with a wrench ¼ to ½ a turn | 1. Apply installation torque
2. Screw on the locking nut, then tighten with a wrench ¼ to ½ a turn | 1. Apply installation torque | 2. Screw on the locking nut, then tighten with a wrench ¼ to ½ a turn | European Technical Assessment ETA-04/0095: Chemical injection mortar WIT-VIZ + anchor rod W-VIZ-A or female thread sleeve W-VIZ-IG
General technical approval Z-21.3-1909: Injection mortar WIT-VIZ + anchor rod W-VIZ-A dynamic Seismic performance category C1 and C2 (W-VIZ-A M10 to M24) | European Technical Assessment ETA-04/0095: Chemical injection mortar WIT-VIZ + anchor rod W-VIZ-A or female thread sleeve W-VIZ-IG | General technical approval Z-21.3-1909: Injection mortar WIT-VIZ + anchor rod W-VIZ-A dynamic Seismic performance category C1 and C2 (W-VIZ-A M10 to M24)
Application
Application area | Anchor rod W-VIZ-A: Railings, metal structures and profiles, brackets, supports, steps etc.
Anchor rod W-VIZ-IG: Railings, metal structures and steps etc.
Anchor rod W-VIZ-A dynamic: Slewing cranes, crane runways, ventilation fans, welding robots, conveyors, street signs, etc. | Anchor rod W-VIZ-A: Railings, metal structures and profiles, brackets, supports, steps etc. | Anchor rod W-VIZ-IG: Railings, metal structures and steps etc. | Anchor rod W-VIZ-A dynamic: Slewing cranes, crane runways, ventilation fans, welding robots, conveyors, street signs, etc.
Tehnical Information
Type description: WIT-VM 100 | Container: Coaxial cartridge | Contents: 420 ml | Included in delivery: Mortar cartridge 420 ml (coaxial) + 1 x mixer nozzle | Suitable application gun: Battery-powered application gun 420ml, Application gun MULTI, Application gun WIT 420ml, Pneumatic application gun 420ml, EasyMax 420 ml, HandyMax 420 ml | Min./max. processing temperature /conditions: -5 to 40 °C / temperature in the anchorage ground during processing and hardening | Min./max. ambient temperature / Conditions: -40 to 120 °C / after completely curing process | Temperature resistance, long-term temperatures max.: 72 °C | Temperature resistance, short-term temperatures max.: 120 °C | Shelf life from production/conditions: 18 Month / cool and dry storage area, 5°C to 25°C | Approval: ETA-04/0095, DIBt Z-21.3-1909, ETA-18/0979 | Chemical basis: Vinylester, styrene free | Colour: Grey
