Description

Specification
Reusable concrete screw for temporary mounting of construction site equipment with approval in green concrete. With hexagon head, zinc plated steel | Quick and easy installation

Immediate load-bearing capacity

Very secure installation

Low material costs as re-usable

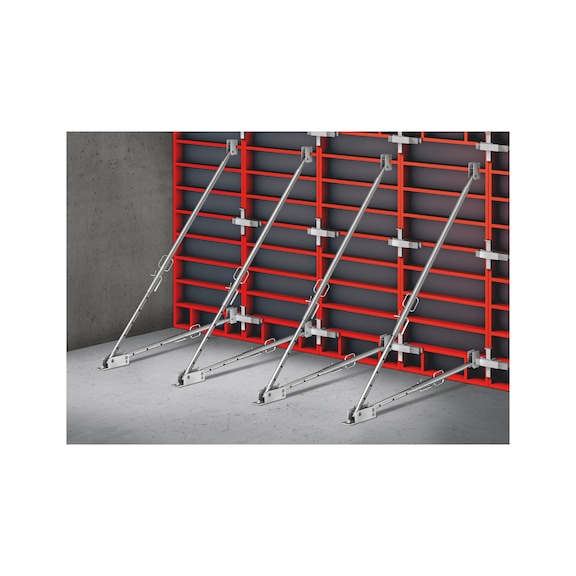

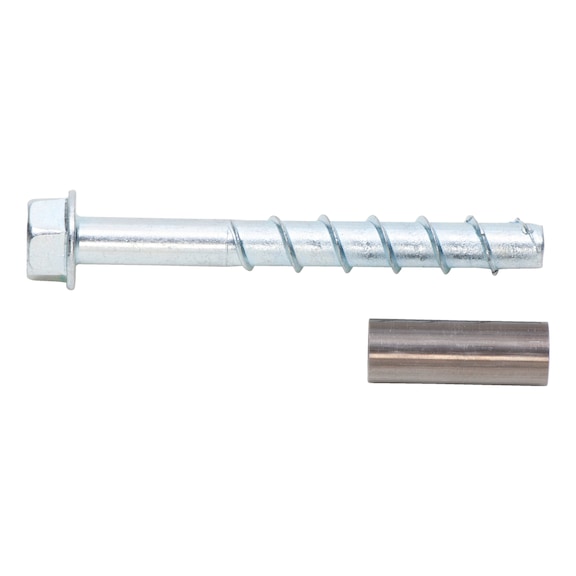

No installation torque required | Quick and easy installation | Immediate load-bearing capacity | Very secure installation | Low material costs as re-usable | No installation torque required | Proof of Performance | DIBt National technical approval for cracked and uncracked concrete Z-21.8-2090 for the temporary attachment of construction site equipment | Notice | The screw and the thread must be checked for visual defects with the test sleeve supplied before every reuse. | Application area | Oblique struts in formwork construction

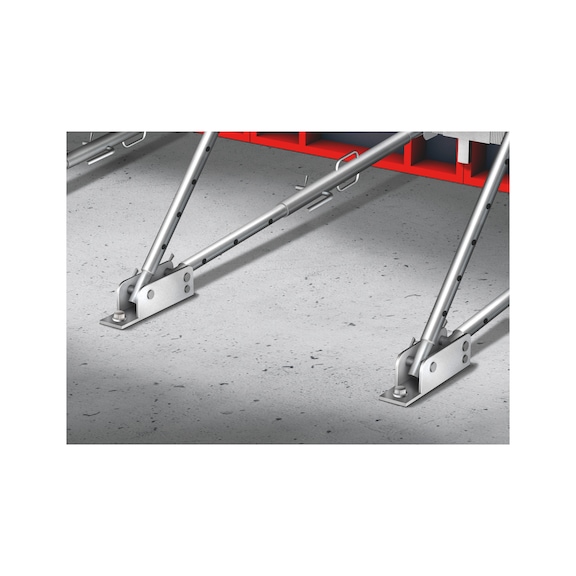

Oblique struts in formwork construction

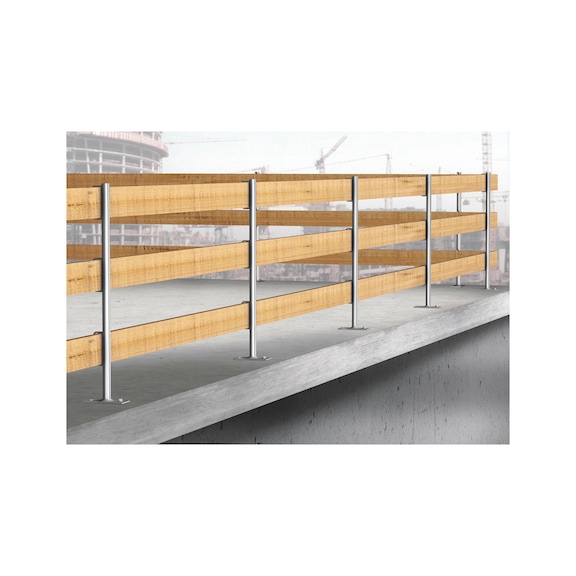

Construction site railings | Oblique struts in formwork construction | Oblique struts in formwork construction | Oblique struts in formwork construction | Oblique struts in formwork construction | Oblique struts in formwork construction | Oblique struts in formwork construction | Construction site railings | Construction site railings | Construction site railings | The concrete screw should be checked for wear before every use. The concrete screw may only be re-used when more than three thread turns can be inserted into the sleeve.
Create the drill hole
Clean the drill hole
Place screw
Screw in the screw | The concrete screw should be checked for wear before every use. The concrete screw may only be re-used when more than three thread turns can be inserted into the sleeve. | The concrete screw should be checked for wear before every use. The concrete screw may only be re-used when more than three thread turns can be inserted into the sleeve. | The concrete screw should be checked for wear before every use. The concrete screw may only be re-used when more than three thread turns can be inserted into the sleeve. | Create the drill hole | Create the drill hole | Create the drill hole | Clean the drill hole | Clean the drill hole | Clean the drill hole | Place screw | Place screw | Place screw | Screw in the screw | Screw in the screw | Screw in the screw | DIBt National technical approval for cracked and uncracked concrete Z-21.8-2090 for the temporary attachment of construction site equipment
Application
Application area | Temporary fixings of construction site facilities, such as props, slanted props, scaffolding or fall protection such as railings | In reinforced and non-reinforced concrete

In cracked and uncracked concrete

For normal weight concrete of strength classes C20/25 to C50/60

In fresh concrete from a concrete compressive strength of fck, cube ≥ 10 N/mm² | In reinforced and non-reinforced concrete | In cracked and uncracked concrete | For normal weight concrete of strength classes C20/25 to C50/60 | In fresh concrete from a concrete compressive strength of fck, cube ≥ 10 N/mm² | ck, cube
Tehnical Information

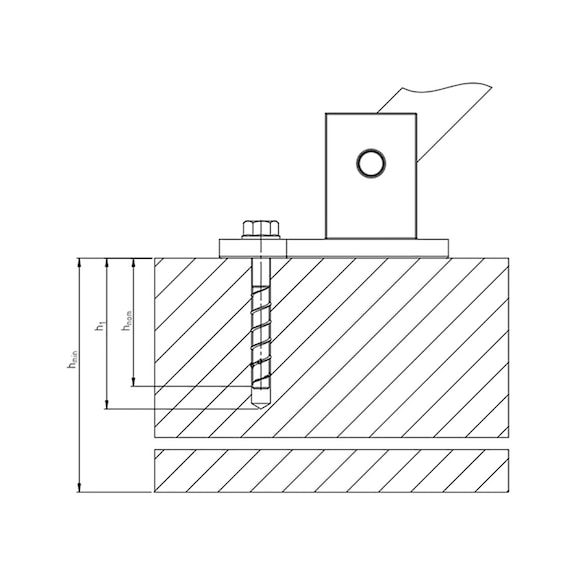

Anchor size: 14 mm | Anchor length (l): 150 mm | Attachment height (t fix 1): 75 mm | Material: Steel | Surface: Zinc plated | External drive: WS21 | Nominal drill-bit diameter (d 0): 14 mm | Type description: W-BS-T | Attachment height (t fix 1-2-3): 75 / 60 / 35 mm
