Easy to install using a cordless screwdriver. Avoids hitting reinforcement due to very low embedment depth. For concrete, with pan head, zinc-plated steel | Quick, easy installation

Can be assembled by hand

Economical and efficient mounting solution | Quick, easy installation | Can be assembled by hand | Economical and efficient mounting solution | 3 different head diameters for a versatile application | Type P with pan head dia. 14 mm

Type SP with extra-small pan head dia. 10.5 mm

Type LP with extra-large pan head dia. 17.6 mm | Type P with pan head dia. 14 mm | Type SP with extra-small pan head dia. 10.5 mm | Type LP with extra-large pan head dia. 17.6 mm | Proof of Performance | European Technical Assessment ETA-15/0091 for anchors in a redundant non-structural system in concrete: | Static and quasi-static load

Fire resistance: R30, R60, R90, R120 | Static and quasi-static load | Fire resistance: R30, R60, R90, R120 | Tensile capacity in hollow core concrete slabs – expert report no. 21641 – 2016 | Notice | It is preferable to install the W-BS Compact manually

If a cordless drill driver is used for assembly, at least five preliminary tests should be performed on location to ensure the correct drill driver settings and to prevent over-tightening of the W-BS Compact. It is recommended that you start with the drill driver’s lowest torque setting and increase it if necessary

Do not use a tangential impact driver for installation | It is preferable to install the W-BS Compact manually | If a cordless drill driver is used for assembly, at least five preliminary tests should be performed on location to ensure the correct drill driver settings and to prevent over-tightening of the W-BS Compact. It is recommended that you start with the drill driver’s lowest torque setting and increase it if necessary | Do not use a tangential impact driver for installation | Application area | Lightweight mounting rails | Lightweight mounting rails | Lightweight mounting rails | Create the drill hole
Clean the drill hole
Position anchor
Screw in anchor | Create the drill hole | Create the drill hole | Create the drill hole | Clean the drill hole | Clean the drill hole | Clean the drill hole | Position anchor | Position anchor | Position anchor | Screw in anchor | Screw in anchor | Screw in anchor | European Technical Assessment ETA-15/0091 for anchors in a redundant non-structural system in concrete: | Static and quasi-static load

Fire resistance: R30, R60, R90, R120 | Static and quasi-static load | Fire resistance: R30, R60, R90, R120 | Tensile capacity in hollow core concrete slabs – expert report no. 21641 – 2016
Application
Application area | Anchors in a redundant non-structural system, with European Technical Assessment: | In normal weight concrete C20/25 to C50/60 (cracked and uncracked concrete)

Fastenings under exposure to fire | In normal weight concrete C20/25 to C50/60 (cracked and uncracked concrete) | Fastenings under exposure to fire | Suitable for mounting low loads in concrete: | Economical and efficient mounting solution for many electrical, plumbing and HVAC applications or attachments that have to be demountable: | Type P: Mounting of metal profiles, mounting rails, vernier hangers, sheet metal, etc. in in-place installation

Type LP with large pan head: Mounting attachments such as mounting rails, profiles, sheet metal, etc. if a large contact surface is required

Type SP with small pan head: Mounting attachments such as metal multiple cable holders, cable clamps, pipe clamps, cable clips, ceiling hangers, profiles, brackets, etc. | Type P: Mounting of metal profiles, mounting rails, vernier hangers, sheet metal, etc. in in-place installation | Type LP with large pan head: Mounting attachments such as mounting rails, profiles, sheet metal, etc. if a large contact surface is required | Type SP with small pan head: Mounting attachments such as metal multiple cable holders, cable clamps, pipe clamps, cable clips, ceiling hangers, profiles, brackets, etc. | W-BS Compact (zinc-plated steel) may only be used in dry indoor conditions.
Tehnical Information

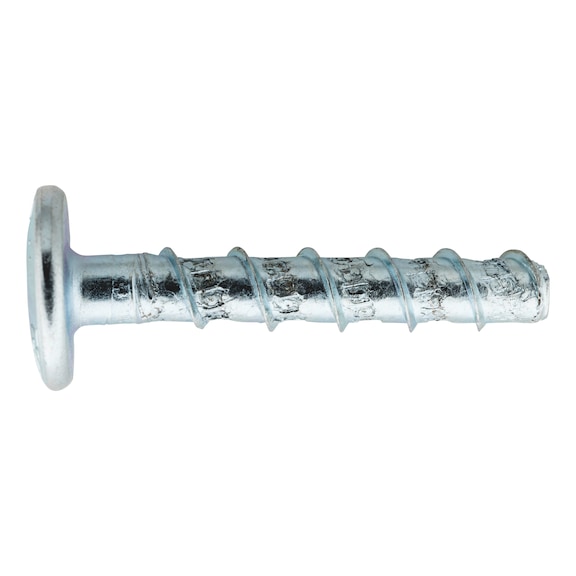

Type description: W-BS Compact type LP | Anchor size: 6 mm | Thread diameter: 7 mm | Anchor length (l): 28 mm | Head type: Pan head | Head diameter: 17.6 mm | Max. attachment height (t fix): 3 mm | Internal drive: TX30 | Nominal drill-bit diameter (d 0): 6.0 mm | Drill hole depth (h 1): 28 mm | Surface: Zinc plated | Material: Steel | Embedding depth (h nom): 25 mm | Minimum component thickness (h min): 80 mm | Through-hole in the component to be connected (d f): 8.0 mm | Approval: ETA-15/0091 | Drill cutting diameter (d cut): 6.40 mm
