Description

Specification

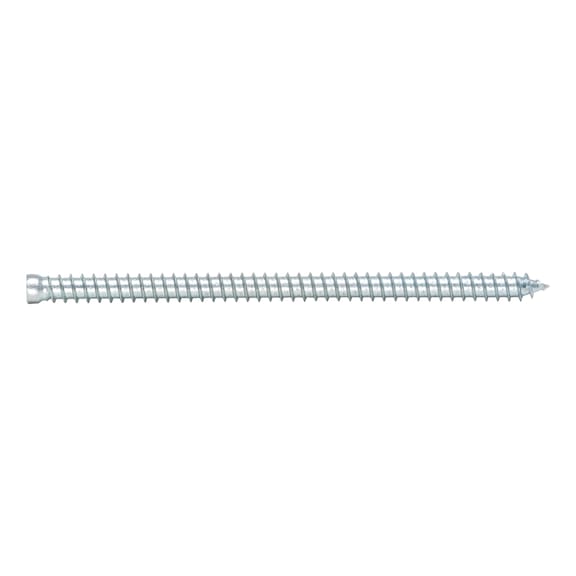

For fastening windows in concrete and solid block masonry. Particularly small cylinder head for screwing into narrow window rebates. Zinc-plated steel, blue passivated, RW 25 drive | Positive-locking, removable anchorage with no expansion pressure

Load-bearing function is retained, even under thermal load

Tested fire resistance duration of 120 minutes

Time saving – no anchor necessary

Short installation times, as no tools are required for insertion

AW drive for longer bit service life, improved power transmission and no ejection forces

Through-hole mounting

Immediate load-bearing capacity – no waiting after insertion

Positive locking for high load-bearing capacity

Removable

Virtually no expansion forces on insertion | Positive-locking, removable anchorage with no expansion pressure | Load-bearing function is retained, even under thermal load | Tested fire resistance duration of 120 minutes | Time saving – no anchor necessary | Short installation times, as no tools are required for insertion | AW drive for longer bit service life, improved power transmission and no ejection forces | Through-hole mounting | Immediate load-bearing capacity – no waiting after insertion | Positive locking for high load-bearing capacity | Removable | Virtually no expansion forces on insertion | Notice | It is important to check that the components are correctly installed for the specific construction conditions (e.g. weight of window casement, surface properties, hole pattern in the brick). Fall-proof glazing as specified in the German technical rules for safety glazing (TRAV) or DIN 18008-4 may only be attached with the AMO Combi screw if appropriate individual approval has been obtained before installation starts. | Drill perforated and hollow blocks with a rotary drill (without hammer mechanism) | Drill perforated and hollow blocks with a rotary drill (without hammer mechanism) | Align window frames using alignment clamps or Amo® Bag | ® | Screw length = frame width + gap + length of thread engagement (see also under 55.2 Amo® III 11.5 mm) | ® | Fire protection test report no. 3174/0649-2 dated 12 January 2000 | Test of suitability for attaching a flood-proof window in accordance with ift directive FE-07/1 conducted by the ift Rosenheim Institute. Test report no. 202 31790 dated 17 May 2006 | Testing a fastening element: Evaluation of test results for practical use in window installation by the ift Rosenheim Institute. Test report no. 23511241/2 dated 13 February 1990 | Test of suitability for fastening a window to a brick masonry structure by ift Rosenheim. Test report no. 50922462 dated 11 October 2000
Application
Application area | Tension-free spaced installation for wooden, plastic and aluminium window frames

Frame coupling

The small head allows screw insertion with narrow window rebates. Particularly suitable for use in brick surfaces with all frame materials | Tension-free spaced installation for wooden, plastic and aluminium window frames | Frame coupling | The small head allows screw insertion with narrow window rebates. Particularly suitable for use in brick surfaces with all frame materials | Instructions | Guidelines for planning and executing the installation of windows and exterior doors, 2020 edition | Art. no. 5995000000: | The fixture must safely transfer all standard forces affecting the window to the structure and the foundation. The total load must therefore be calculated from e.g. the window load, wind load and working load (see DIN 1055). The currently applicable building regulations stipulate that buildings and their components must be planned in such a way that they do not endanger human life and health or pose a risk to public safety. Attachment of the windows must also comply with this criterion. | When securing window walls compliant with the former DIN 18056 standard or elements with a surface area in excess of 9 m2 and fall-proof glazing as specified in the German technical rules for safety glazing (TRAV) or DIN 18008-4, the following must be observed | The DIN 18056 standard applied to window walls with a minimum surface area of 9 m² and a minimum side length of 2 m on the shortest side. Anchors with general or European technical approval or with individual approval should be used for this application. Similarly, only anchors with a general construction permit or European Technical Approval or with individual approval must be used to attach fall-proof glazing as specified in the German technical rules for safety glazing (TRAV) or DIN 18008-4. | ²
Tehnical Information

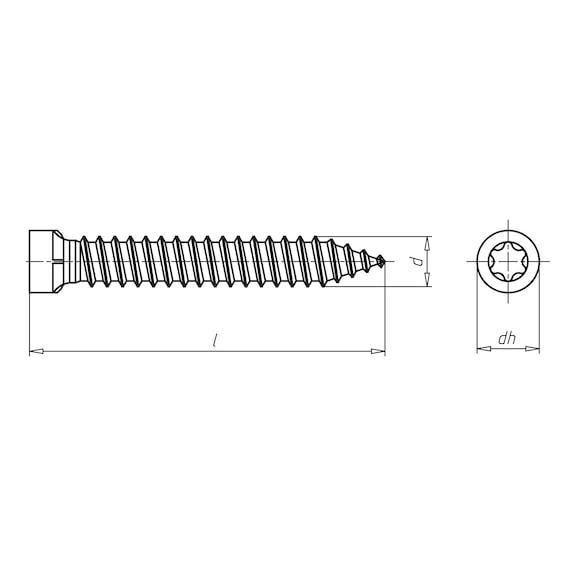

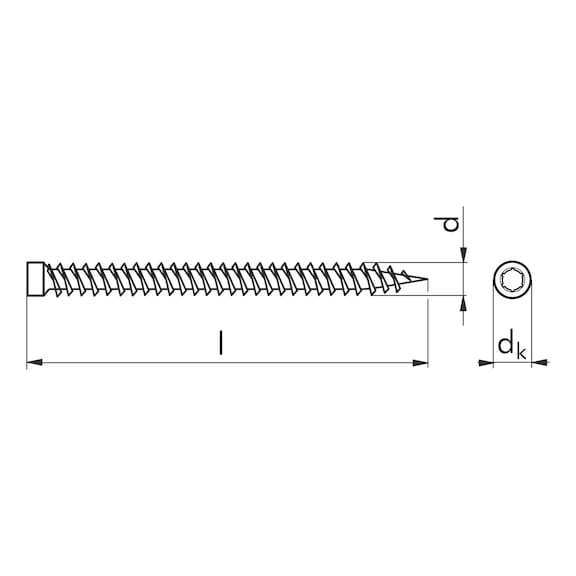

Length (l): 112 mm | Thread diameter (d): 7.5 mm | Material: Steel | Surface: Zinc plated | Head type: Socket head | Head diameter (d(h/k)): 7.5 mm | Internal drive: RW25 | Thread type: Dowel screw thread | Shape of tip: Tip | Calcium silicate block, solid brick, pumice,

Lightweight concrete, softwood: 60 | Sand-lime brick, solid brick: 50 | Pumice, lightweight concrete, softwood: 60 | Calcium silicate block, solid brick, pumice,

Lightweight concrete: 6,0 | Softwood: No pre-drilling required | Window frame: 6,2
