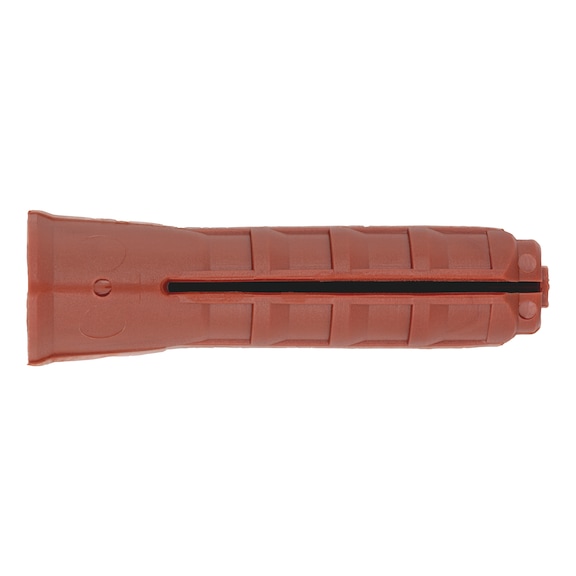

Plastic anchor designed specifically for aerated concrete | Three-segment plastic anchor specifically for use in aerated concrete

Three-way division for almost positive locking anchoring in soft, aerated concrete

Matched to specific screw diameters

Attachment with pre-positioned installation

When the anchor is tapped into the pre-drilled hole, the segments that protrude over the core diameter burrow into the aerated concrete. As a result, positive locking occurs when the screw is then inserted.

For installation, we recommend the ASSY®-D plug screw | Three-segment plastic anchor specifically for use in aerated concrete | Three-way division for almost positive locking anchoring in soft, aerated concrete | Matched to specific screw diameters | Attachment with pre-positioned installation | When the anchor is tapped into the pre-drilled hole, the segments that protrude over the core diameter burrow into the aerated concrete. As a result, positive locking occurs when the screw is then inserted. | For installation, we recommend the ASSY®-D plug screw | ® | Create the drill hole
Clean the drill hole
Knock in anchor until flush
Set component in place and screw in screw
Finished | Create the drill hole | Create the drill hole | Clean the drill hole | Clean the drill hole | Knock in anchor until flush | Knock in anchor until flush | Set component in place and screw in screw | Set component in place and screw in screw | Finished | Finished
Application
Application area | In aerated concrete PB2 (compressive strength 2.5 N/mm²) and PB4 (5 N/mm²)

Façade and roof structures made of wood and metal

Cable ducts, switches, lights, fuse boxes, cable clamps

Pipe clamps, toilet and washbasin fixings

Wall mounted cupboards, skirting boards | In aerated concrete PB2 (compressive strength 2.5 N/mm²) and PB4 (5 N/mm²) | Façade and roof structures made of wood and metal | Cable ducts, switches, lights, fuse boxes, cable clamps | Pipe clamps, toilet and washbasin fixings | Wall mounted cupboards, skirting boards
Tehnical Information
Anchor diameter: 14 mm | Anchor length (l): 75 mm | Anchoring depth (h v): 75 mm | Nominal drill-bit diameter (d 0): 14 mm | Drill hole depth (t): 85 mm
